無風扇強固系統

嵌入式電腦

無風扇強固系統

型號

品牌

中央處理器

晶片組

USB/SATA/COM/LAN 電腦接口

顯示

溫度

擴充插槽

尺寸

規格書 / 查詢

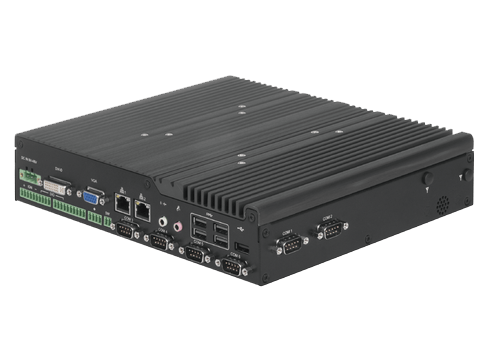

P2002 Series

Cincoze

Onboard Intel® 6th Generation Core™ U Series Processor

N/A

5/4/6/2

CDS/VGA//DVI-D

-40°C ~ 85°C

1x PCI, 2x CFM Interface, 1x CDS Interface, 2x Full-size Mini-PCIe Sockets, 1x SIM Socket

254.5mm x 190220mm x 54mm / 254.5mm x 220mm x 72mm

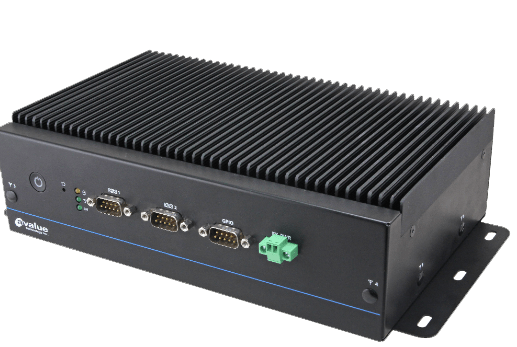

EMS-TGL-6LAN

Avalue

11th Gen. Intel® Core™ i7/i5/i3 BGA Processor

N/A

6/1/2/6

HDMI/DisplayPort++

-40°C ~ 70°C

1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1 1 x M.2 Key-E 2230 for Wi-Fi & BT Module

240mm x 150mm x 69 mm

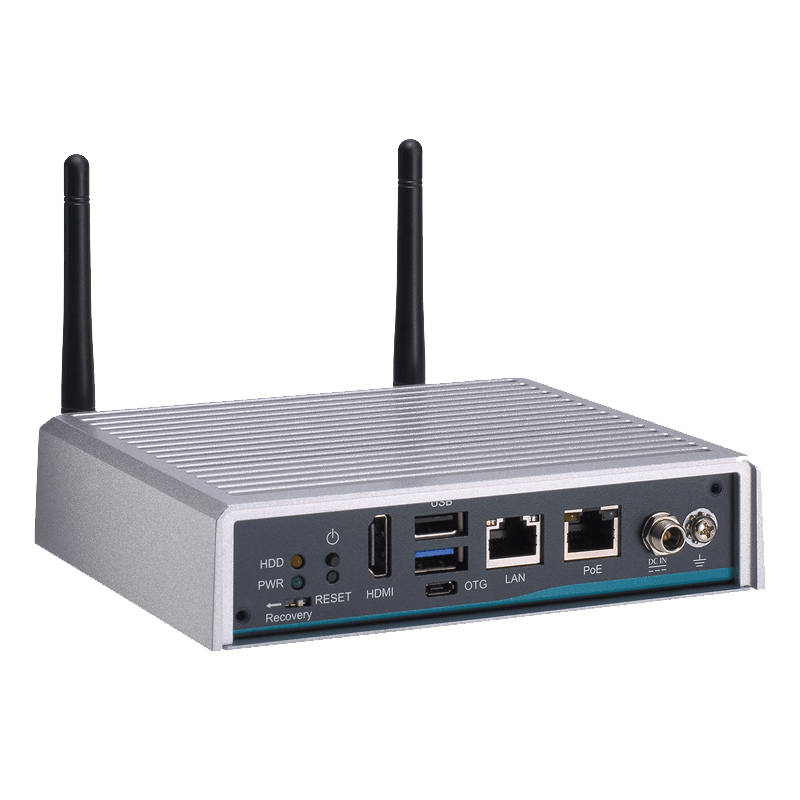

AIE100-ONA

Axiomtek

6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3

SoC integrated

3/0/0/1

HDMI

-20°C ~ 50°C

1 x PCI Express Mini Card, 1 x SIM slot

148.6mm x 129.8mm x 34.6 mm

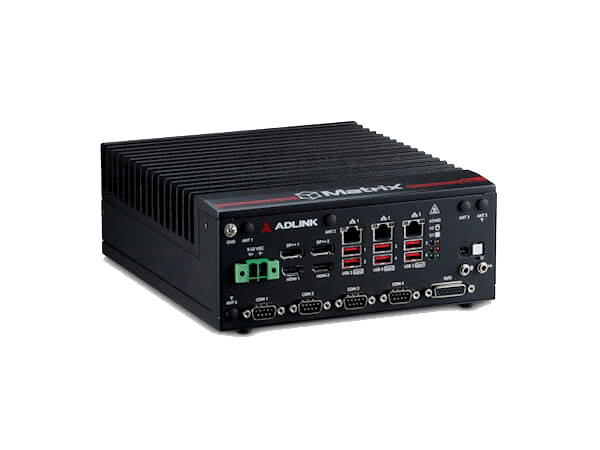

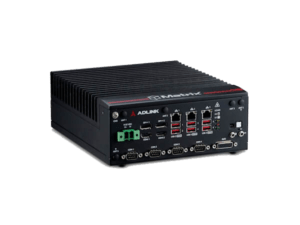

MVP-5200 Series

Adlink

12th Gen Intel® Core™ processors

N/A

7/2/2/3

HDMI/DisplayPort

-20°C ~ 60°C

1x MXM 3.1 Type A/B

210mm x 240mm x 86mm

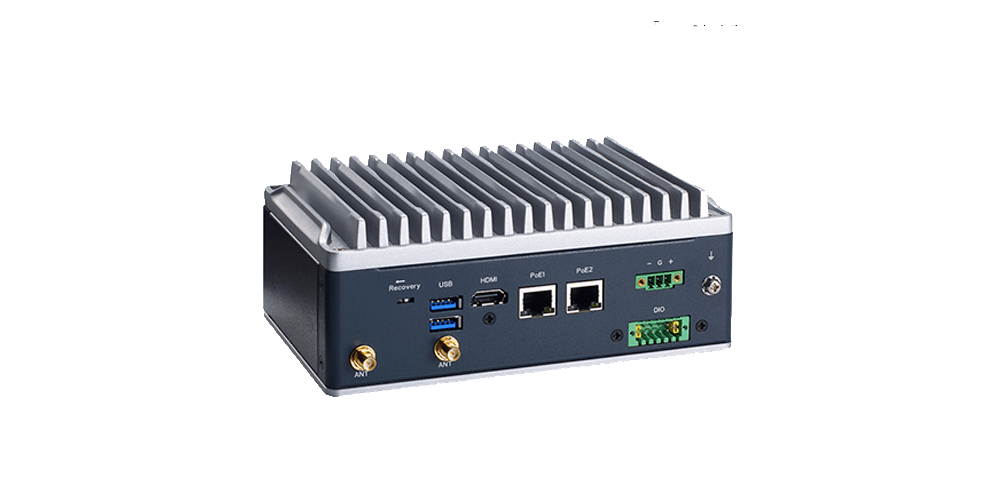

AIE510-ONX

Axiomtek

8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

N/A

2/0/1/2

HDMI

-25°C ~ 60°C

1 x M.2 Key E 2230 slot, 1 x Full-size PCI Express Mini Card slot, 1 x M.2 Key B 3042/3052 slot for 5G/LTE, 1 x Nano SIM slot

180mm x 124mm x 80.7mm

ICO230

Axiomtek

NXP i.MX 8M-PLUS ARM CORTEX 4xA53 + M7 Industrial 1.6 GHz

SoC integrated

2/0/4/2

HDMI

-40°C to +70°C

1 x M.2 Key E 2230 slot, 1 x Full-size PCIe Mini Card slot

48 mm (W) x 110 mm (D) x 155 mm (H)

NDiS B363

Nexcom

Intel® Core™ Ultra U Processor Series

N/A

4/1/2/2

2 x HDMI® 2.0 output

0°C ~ 60°C

1 x M.2 Key B 3052/2242 (for 5G/LTE module), 1 x M.2 Key E 2230 (for Wi-Fi module)

200mm (W) x 140mm (D) x 37mm (H)

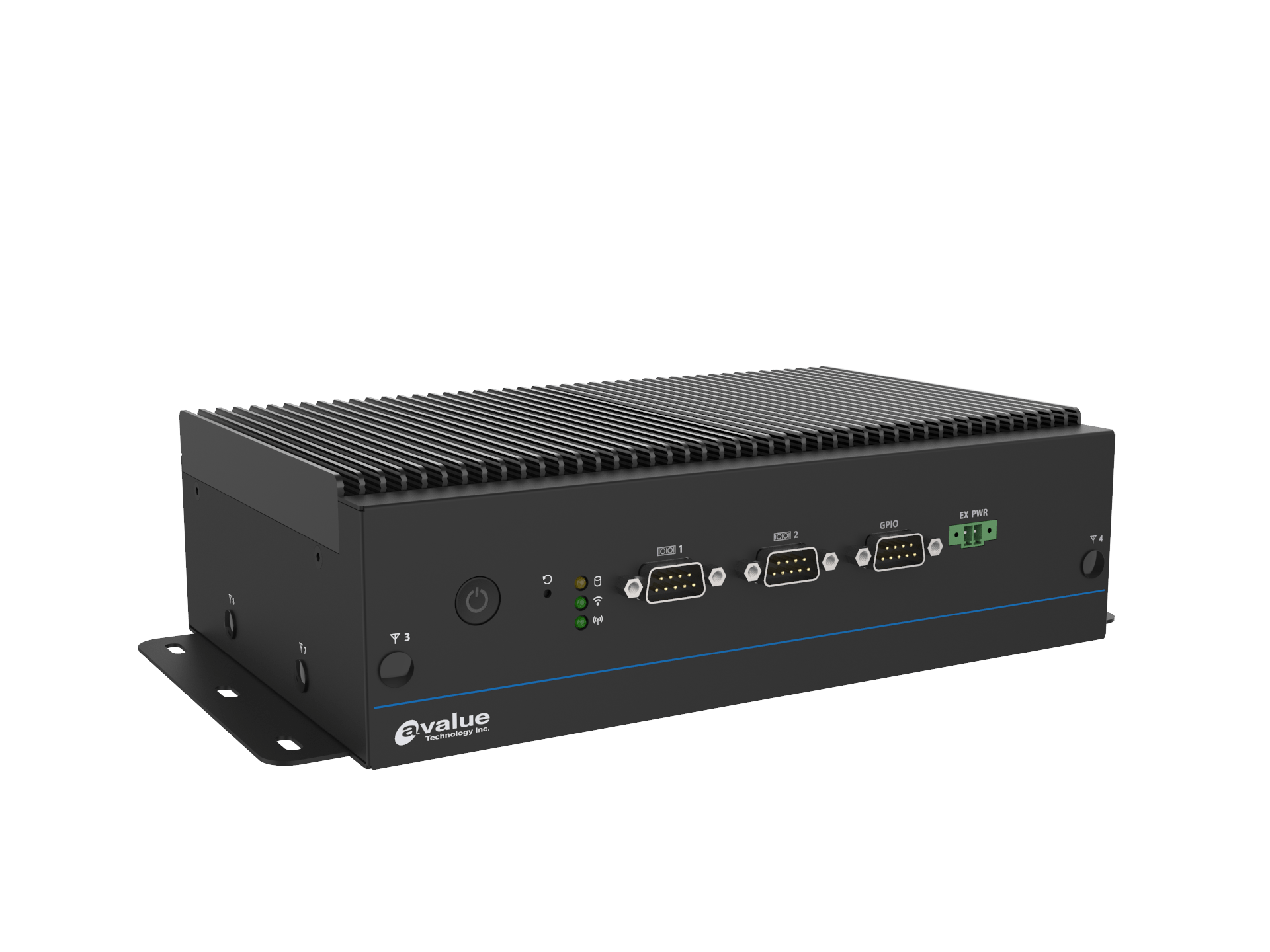

EMS-TGL-6COM

Avalue

11th Gen. Intel® Core™ i7/i5/i3 BGA Processor

N/A

6/1/6/2

HDMI/DisplayPort++

-40°C ~ 70°C

1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1 1 x M.2 Key-E 2230 for Wi-Fi & BT Module(CNVi)

240mm x 150mm x 69 mm

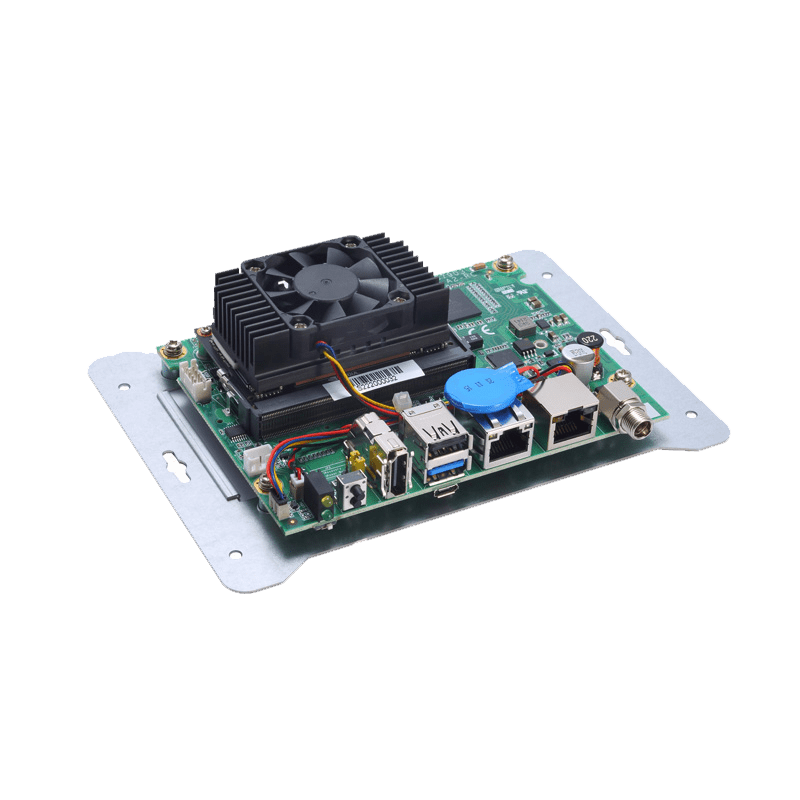

AIE110-ONA

Axiomtek

6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3

SoC integrated

3/0/0/1

HDMI

-10°C ~ 60°C

1 x PCI Express Mini Card, 1 x SIM slo

165mm x 117mm x 37.7 mm

MVP-6200 Series

Adlink

12th Gen. Intel® Celeron® or Core™ i3/ i5/ i7/ i9

N/A

6/2/2/3

HDMI/DisplayPort

-20°C ~ 60°C

Flexible modular

165mm x 240mm x 210mm

P2002 Series

Brand

Cincoze

CPU

Onboard Intel® 6th Generation Core™ U Series Processor

Chipset

N/A

USB/SATA/COM/LAN

5/4/6/2

Display

CDS/VGA//DVI-D

Temp

-40°C ~ 85°C

Expansion

1x PCI, 2x CFM Interface, 1x CDS Interface, 2x Full-size Mini-PCIe Sockets, 1x SIM Socket

Dimension

254.5mm x 190220mm x 54mm / 254.5mm x 220mm x 72mm

規格書 / 查詢

EMS-TGL-6LAN

Brand

Avalue

CPU

11th Gen. Intel® Core™ i7/i5/i3 BGA Processor

Chipset

N/A

USB/SATA/COM/LAN

6/1/2/6

Display

HDMI/DisplayPort++

Temp

-40°C ~ 70°C

Expansion

1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1 1 x M.2 Key-E 2230 for Wi-Fi & BT Module

Dimension

240mm x 150mm x 69 mm

規格書 / 查詢

AIE100-ONA

Brand

Axiomtek

CPU

6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3

Chipset

SoC integrated

USB/SATA/COM/LAN

3/0/0/1

Display

HDMI

Temp

-20°C ~ 50°C

Expansion

1 x PCI Express Mini Card, 1 x SIM slot

Dimension

148.6mm x 129.8mm x 34.6 mm

規格書 / 查詢

MVP-5200 Series

Brand

Adlink

CPU

12th Gen Intel® Core™ processors

Chipset

N/A

USB/SATA/COM/LAN

7/2/2/3

Display

HDMI/DisplayPort

Temp

-20°C ~ 60°C

Expansion

1x MXM 3.1 Type A/B

Dimension

210mm x 240mm x 86mm

規格書 / 查詢

AIE510-ONX

Brand

Axiomtek

CPU

8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

Chipset

N/A

USB/SATA/COM/LAN

2/0/1/2

Display

HDMI

Temp

-25°C ~ 60°C

Expansion

1 x M.2 Key E 2230 slot, 1 x Full-size PCI Express Mini Card slot, 1 x M.2 Key B 3042/3052 slot for 5G/LTE, 1 x Nano SIM slot

Dimension

180mm x 124mm x 80.7mm

規格書 / 查詢

ICO230

Brand

Axiomtek

CPU

NXP i.MX 8M-PLUS ARM CORTEX 4xA53 + M7 Industrial 1.6 GHz

Chipset

SoC integrated

USB/SATA/COM/LAN

2/0/4/2

Display

HDMI

Temp

-40°C to +70°C

Expansion

1 x M.2 Key E 2230 slot, 1 x Full-size PCIe Mini Card slot

Dimension

48 mm (W) x 110 mm (D) x 155 mm (H)

規格書 / 查詢

NDiS B363

Brand

Nexcom

CPU

Intel® Core™ Ultra U Processor Series

Chipset

N/A

USB/SATA/COM/LAN

4/1/2/2

Display

2 x HDMI® 2.0 output

Temp

0°C ~ 60°C

Expansion

1 x M.2 Key B 3052/2242 (for 5G/LTE module), 1 x M.2 Key E 2230 (for Wi-Fi module)

Dimension

200mm (W) x 140mm (D) x 37mm (H)

規格書 / 查詢

EMS-TGL-6COM

Brand

Avalue

CPU

11th Gen. Intel® Core™ i7/i5/i3 BGA Processor

Chipset

N/A

USB/SATA/COM/LAN

6/1/6/2

Display

HDMI/DisplayPort++

Temp

-40°C ~ 70°C

Expansion

1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1 1 x M.2 Key-E 2230 for Wi-Fi & BT Module(CNVi)

Dimension

240mm x 150mm x 69 mm

規格書 / 查詢

AIE110-ONA

Brand

Axiomtek

CPU

6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3

Chipset

SoC integrated

USB/SATA/COM/LAN

3/0/0/1

Display

HDMI

Temp

-10°C ~ 60°C

Expansion

1 x PCI Express Mini Card, 1 x SIM slo

Dimension

165mm x 117mm x 37.7 mm

規格書 / 查詢

MVP-6200 Series

Brand

Adlink

CPU

12th Gen. Intel® Celeron® or Core™ i3/ i5/ i7/ i9

Chipset

N/A

USB/SATA/COM/LAN

6/2/2/3

Display

HDMI/DisplayPort

Temp

-20°C ~ 60°C

Expansion

Flexible modular

Dimension

165mm x 240mm x 210mm

規格書 / 查詢
