品牌
中央處理器
晶片組
顯示
無風扇強固系統
型號
品牌
中央處理器
晶片組
USB/SATA/COM/LAN 電腦接口
顯示
溫度
擴充插槽
尺寸
規格書 / 查詢
P2202 Series
Cincoze
Onboard Intel® Alder Lake-P U-Series Core™ Processor
N/A
4/2/4/2
CDS/VGA/HDMI/DP
-40°C ~ 70°C
2x CFM Interface, 1x CDS Interface, 2x Full-size Mini-PCIe Sockets, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket
254.5mm x 190mm x 41.5mm / 254.5mm x 190mm x 61mm
EMS-TGL
Avalue
11th Gen. Intel® Core™ i7/i5/i3 BGA Processor
N/A
4/1/2/2
HDMI/DisplayPort++
-40°C ~ 70°C
1 x M.2 Key-B 2242/3042/3052, 1 x M.2 Key-E 2230 for Wi-Fi & BT Module, 1 x IET interface
240mm x 150mm x 48 mm
EMS-EHL
Avalue
Intel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
N/A
4/1/2/2
HDMI/DisplayPort
-40°C ~ 70°C
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V 1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)
240mm x 150mm x 43 mm
AIE100-903-FL-NX
Axiomtek
6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
SoC integrated
3/0/0/1
HDMI
-30°C ~ 50°C
1 x PCI Express Mini Card, 1 x SIM slot
148.6mm x 129.8mm x 34.6 mm
eBOX630B
Axiomtek
Intel® Core™ Ultra 7 processor 155H, Intel® Core™ Ultra 5 processor 125H, or Intel® Core™ Ultra 5 processor 125U
SoC integrated
8/2/4/4
HDMI, DisplayPort
-40°C to +70°C
1 x Full-size PCI Express Mini Card, 1 x M.2 Key E 2230, 1 x M.2 Key M 2280
250 x 170 x 60 mm
NDiS B361
Nexcom
13th Gen Intel® Core™ processors
N/A
4/1/2/2
2 x HDMI® 1.4 output
-20°C ~ 60°C
1 x M.2 Key B 2242/3052 (for LTE/5G module), 1 x M.2 Key E 2230 (for Wi-Fi module)
200mm (W) x 140mm (D) x 37mm (H)
P2102 Series
Cincoze
Onboard Intel® 8th Generation Core™ U Series Processor
N/A
5/2/0/2
CDS/VGA//DP
-40°C ~ 70°C
1x PCI, 2x CFM Interface, 1x CDS Interface, 2x Full-size Mini-PCIe Sockets, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket
254.5mm x 190mm x 41.5mm / 254.5mm x 190mm x 61mm
EMS-TGL-PSE
Avalue
11th Gen. Intel® Core™ i7/i5/i3 BGA Processor
N/A
6/1/2/10
HDMI/DisplayPort++
-40°C ~ 60°C
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1 1 x M.2 Key-E 2230 for Wi-Fi & BT Module(CNVi)
240mm x 150mm x 69 mm
EMS-EHL-6LAN
Avalue
Intel® Celeron® J6413 / Atom™ x6425E SoC BGA Processor
N/A
6/1/2/6
HDMI/DisplayPort++
-40°C ~ 70°C
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V 1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)
240mm x 150mm x 64 mm

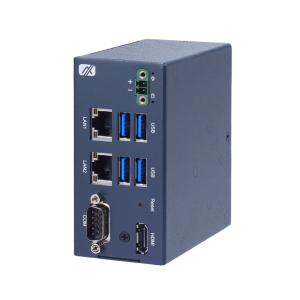

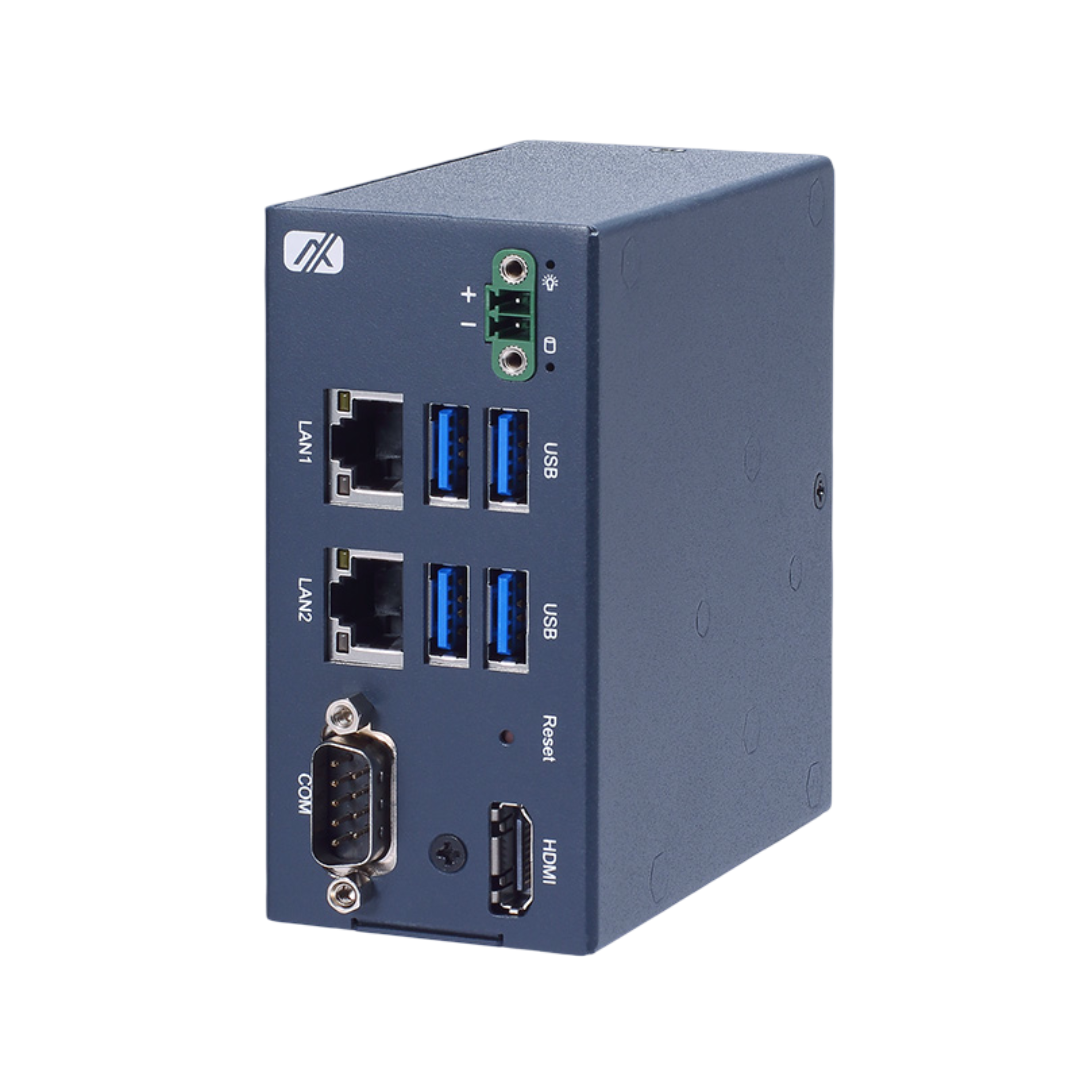

ICO110
Axiomtek
Intel® Celeron® N3350
SoC integrated
4/0/1/2
HDMI
-40°C to +70°C
1 x half-size Rev. 1.2 PCI Express Mini Card slot
48 x 100 x 100 mm
P2202 Series
Brand
Cincoze
CPU
Onboard Intel® Alder Lake-P U-Series Core™ Processor
Chipset
N/A
USB/SATA/COM/LAN
4/2/4/2
Display
CDS/VGA/HDMI/DP
Temp
-40°C ~ 70°C
Expansion
2x CFM Interface, 1x CDS Interface, 2x Full-size Mini-PCIe Sockets, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket
Dimension
254.5mm x 190mm x 41.5mm / 254.5mm x 190mm x 61mm
規格書 / 查詢
EMS-TGL
Brand
Avalue
CPU
11th Gen. Intel® Core™ i7/i5/i3 BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
4/1/2/2
Display
HDMI/DisplayPort++
Temp
-40°C ~ 70°C
Expansion
1 x M.2 Key-B 2242/3042/3052, 1 x M.2 Key-E 2230 for Wi-Fi & BT Module, 1 x IET interface
Dimension
240mm x 150mm x 48 mm
規格書 / 查詢
EMS-EHL
Brand
Avalue
CPU
Intel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
4/1/2/2
Display
HDMI/DisplayPort
Temp
-40°C ~ 70°C
Expansion
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V 1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)
Dimension
240mm x 150mm x 43 mm
規格書 / 查詢
AIE100-903-FL-NX
Brand
Axiomtek
CPU
6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
Chipset
SoC integrated
USB/SATA/COM/LAN
3/0/0/1
Display
HDMI
Temp
-30°C ~ 50°C
Expansion
1 x PCI Express Mini Card, 1 x SIM slot
Dimension
148.6mm x 129.8mm x 34.6 mm
規格書 / 查詢
eBOX630B
Brand
Axiomtek
CPU
Intel® Core™ Ultra 7 processor 155H, Intel® Core™ Ultra 5 processor 125H, or Intel® Core™ Ultra 5 processor 125U
Chipset
SoC integrated
USB/SATA/COM/LAN
8/2/4/4
Display
HDMI, DisplayPort
Temp
-40°C to +70°C
Expansion
1 x Full-size PCI Express Mini Card, 1 x M.2 Key E 2230, 1 x M.2 Key M 2280
Dimension
250 x 170 x 60 mm
規格書 / 查詢
NDiS B361
Brand
Nexcom
CPU
13th Gen Intel® Core™ processors
Chipset
N/A
USB/SATA/COM/LAN
4/1/2/2
Display
2 x HDMI® 1.4 output
Temp
-20°C ~ 60°C
Expansion
1 x M.2 Key B 2242/3052 (for LTE/5G module), 1 x M.2 Key E 2230 (for Wi-Fi module)
Dimension
200mm (W) x 140mm (D) x 37mm (H)
規格書 / 查詢
P2102 Series
Brand
Cincoze
CPU
Onboard Intel® 8th Generation Core™ U Series Processor
Chipset
N/A
USB/SATA/COM/LAN
5/2/0/2
Display
CDS/VGA//DP
Temp
-40°C ~ 70°C
Expansion
1x PCI, 2x CFM Interface, 1x CDS Interface, 2x Full-size Mini-PCIe Sockets, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket
Dimension
254.5mm x 190mm x 41.5mm / 254.5mm x 190mm x 61mm
規格書 / 查詢
EMS-TGL-PSE
Brand
Avalue
CPU
11th Gen. Intel® Core™ i7/i5/i3 BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
6/1/2/10
Display
HDMI/DisplayPort++
Temp
-40°C ~ 60°C
Expansion
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1 1 x M.2 Key-E 2230 for Wi-Fi & BT Module(CNVi)
Dimension
240mm x 150mm x 69 mm
規格書 / 查詢
EMS-EHL-6LAN
Brand
Avalue
CPU
Intel® Celeron® J6413 / Atom™ x6425E SoC BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
6/1/2/6
Display
HDMI/DisplayPort++
Temp
-40°C ~ 70°C
Expansion
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V 1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)
Dimension
240mm x 150mm x 64 mm
規格書 / 查詢
ICO110
Brand
Axiomtek
CPU
Intel® Celeron® N3350
Chipset
SoC integrated
USB/SATA/COM/LAN
4/0/1/2
Display
HDMI
Temp
-40°C to +70°C
Expansion
1 x half-size Rev. 1.2 PCI Express Mini Card slot
Dimension
48 x 100 x 100 mm
規格書 / 查詢
