品牌
中央處理器
晶片組
顯示
無風扇強固系統
型號
品牌
中央處理器
晶片組
USB/SATA/COM/LAN 電腦接口
顯示
溫度
擴充插槽
尺寸
規格書 / 查詢

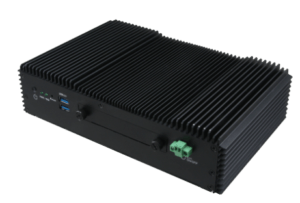

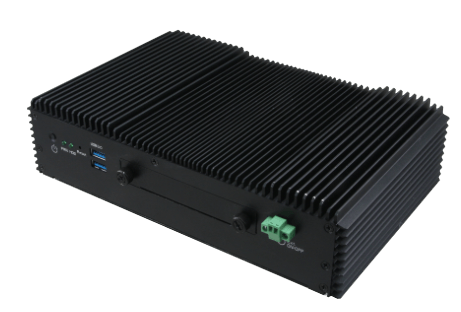

EMS-SKLU-USB
Avalue
6th Gen Intel® Core™ SoC i7/i5/i3/Celeron BGA Processor
N/A
11/1/2/2
DisplayPort
-20°C ~ 60°C
1 x Mini PCIe 1 x M.2 (2242/3042) B-Key, supports SATA/ PCIex1/ USB3.0 Storage
240mm x 151.5mm x 60mm

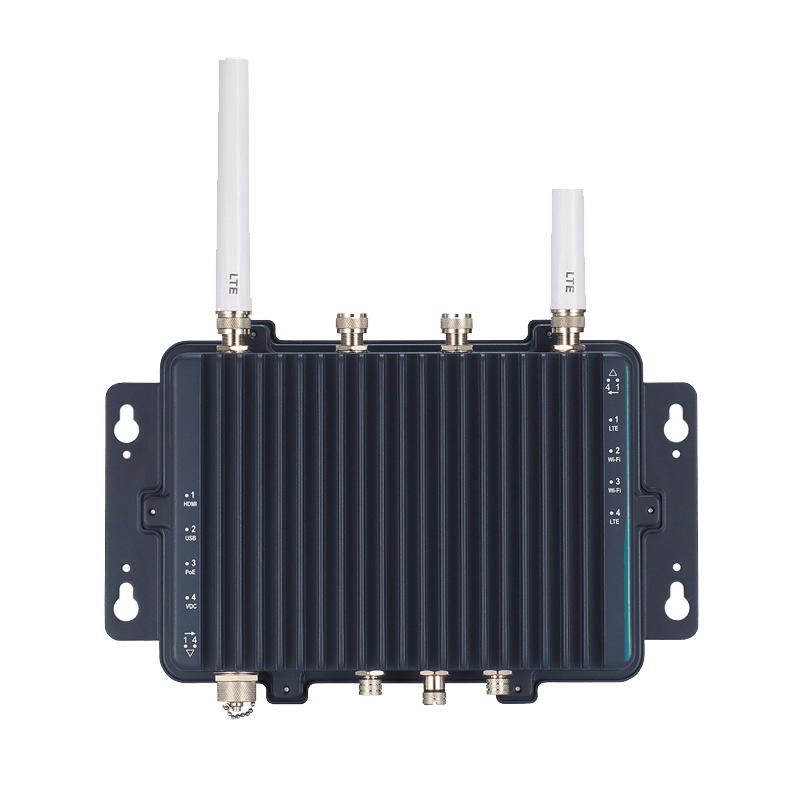

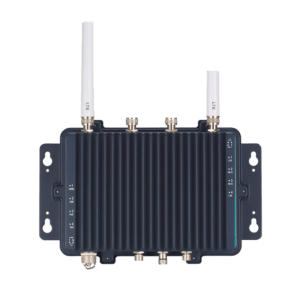

AIE800-904-FL-DC
Axiomtek
6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
SoC integrated
2/0/0/2
HDMI
-30°C ~ 50°C
1 x PCI Express Mini Card, 1 x SIM slot
366.83mm x 235mm x 83.8mm
EMS-EHL-PSE
Avalue
Intel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
N/A
6/1/2/10
HDMI/DP
-40°C ~ 70°C
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V 1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)
240mm x 150mm x 64 mm
Nuvo-2822
Neousys
Intel® Alder Lake N97 processor 12W with 4 E-Cores
N/A
4/1/4/2
1x DP++, 1x HDMI™ 1.4b
-10°C to 70°C
1x PCIe x4 slot @ Gen3 (4-lanes), 1x PCIe x4 slot @ Gen3 (1-lanes), 2x 33MHz/ 32-bit 5V PCI slots
164.6mm (W) x 214.6mm (D) x 135.6mm (H)
DS-1400
Cincoze
12th Generation Intel® Alder Lake-S Series
Intel R680E Chipset
8/3/2/2
VGA/HDMI/DP
-40°C ~ 70°C
1x CFM Interface, 4x CMI Interface, 3x Full-size Mini-PCIe Sockets, 2x SIM Socket
227mm x 261mm x 88 mm
EMS-SKLU-DVI
Avalue
6th Gen Intel® Core™ SoC i7/i5/i3/Celeron BGA Processor
N/A
6/1/2/2
DisplayPort/DVI
-20°C ~ 60°C
1 x Avalue 80-Pin IET Interface, 1 x Mini PCIe, 1 x M.2 (2242/3042) B-Key, supports SATA/ PCIex1/ USB3.0
240mm x 151.5mm x 60mm
RSC201
Axiomtek
Quad-core Arm® Cortex®-A53 MPCore™ up to 1.5GHz
SoC integrated
2/0/1/1
DisplayPort
-30°C ~ 75°C
N/A
153.5mm x 110mm x 67.6mm
EMS-EHL-HDMI
Avalue
Intel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
N/A
6/1/2/4
HDMI/DP
-40°C ~ 70°C
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V 1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)
240mm x 150mm x 64 mm
GT-92GC
Neousys
Intel® 14th/ 13th/ 12th-Gen LGA1700 processor (35W/65W)
Intel® R680E platform controller hub
4/2/2/9
HDMI, DisplayPort
-25°C to 55°C
1x M.2 2280 M key with PCIe-Gen 4x4 for NVMe storage, 2x full-size mPCIe sockets with internal SIM sockets
440mm (W) x 250mm (D) x 88mm (H)
DS-1401
Cincoze
12th Generation Intel® Alder Lake-S Series
Intel R680E Chipset
8/3/2/2
VGA/HDMI/DP
-40°C ~ 85°C
1x PCI, 1x CFM Interface, 4x CMI Interface, 3x Full-size Mini-PCIe Sockets, 2x SIM Socket
227mm x 261mm x 108 mm
EMS-SKLU-USB
Brand
Avalue
CPU
6th Gen Intel® Core™ SoC i7/i5/i3/Celeron BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
11/1/2/2
Display
DisplayPort
Temp
-20°C ~ 60°C
Expansion
1 x Mini PCIe 1 x M.2 (2242/3042) B-Key, supports SATA/ PCIex1/ USB3.0 Storage
Dimension
240mm x 151.5mm x 60mm
規格書 / 查詢
AIE800-904-FL-DC
Brand
Axiomtek
CPU
6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
Chipset
SoC integrated
USB/SATA/COM/LAN
2/0/0/2
Display
HDMI
Temp
-30°C ~ 50°C
Expansion
1 x PCI Express Mini Card, 1 x SIM slot
Dimension
366.83mm x 235mm x 83.8mm
規格書 / 查詢
EMS-EHL-PSE
Brand
Avalue
CPU
Intel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
6/1/2/10
Display
HDMI/DP
Temp
-40°C ~ 70°C
Expansion
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V 1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)
Dimension
240mm x 150mm x 64 mm
規格書 / 查詢
Nuvo-2822
Brand
Neousys
CPU
Intel® Alder Lake N97 processor 12W with 4 E-Cores
Chipset
N/A
USB/SATA/COM/LAN
4/1/4/2
Display
1x DP++, 1x HDMI™ 1.4b
Temp
-10°C to 70°C
Expansion
1x PCIe x4 slot @ Gen3 (4-lanes), 1x PCIe x4 slot @ Gen3 (1-lanes), 2x 33MHz/ 32-bit 5V PCI slots
Dimension
164.6mm (W) x 214.6mm (D) x 135.6mm (H)
規格書 / 查詢
DS-1400
Brand
Cincoze
CPU
12th Generation Intel® Alder Lake-S Series
Chipset
Intel R680E Chipset
USB/SATA/COM/LAN
8/3/2/2
Display
VGA/HDMI/DP
Temp
-40°C ~ 70°C
Expansion
1x CFM Interface, 4x CMI Interface, 3x Full-size Mini-PCIe Sockets, 2x SIM Socket
Dimension
227mm x 261mm x 88 mm
規格書 / 查詢
EMS-SKLU-DVI
Brand
Avalue
CPU
6th Gen Intel® Core™ SoC i7/i5/i3/Celeron BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
6/1/2/2
Display
DisplayPort/DVI
Temp
-20°C ~ 60°C
Expansion
1 x Avalue 80-Pin IET Interface, 1 x Mini PCIe, 1 x M.2 (2242/3042) B-Key, supports SATA/ PCIex1/ USB3.0
Dimension
240mm x 151.5mm x 60mm
規格書 / 查詢
RSC201
Brand
Axiomtek
CPU
Quad-core Arm® Cortex®-A53 MPCore™ up to 1.5GHz
Chipset
SoC integrated
USB/SATA/COM/LAN
2/0/1/1
Display
DisplayPort
Temp
-30°C ~ 75°C
Expansion
N/A
Dimension
153.5mm x 110mm x 67.6mm
規格書 / 查詢
EMS-EHL-HDMI
Brand
Avalue
CPU
Intel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
6/1/2/4
Display
HDMI/DP
Temp
-40°C ~ 70°C
Expansion
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V 1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)
Dimension
240mm x 150mm x 64 mm
規格書 / 查詢
GT-92GC
Brand
Neousys
CPU
Intel® 14th/ 13th/ 12th-Gen LGA1700 processor (35W/65W)
Chipset
Intel® R680E platform controller hub
USB/SATA/COM/LAN
4/2/2/9
Display
HDMI, DisplayPort
Temp
-25°C to 55°C
Expansion
1x M.2 2280 M key with PCIe-Gen 4x4 for NVMe storage, 2x full-size mPCIe sockets with internal SIM sockets
Dimension
440mm (W) x 250mm (D) x 88mm (H)
規格書 / 查詢
DS-1401
Brand
Cincoze
CPU
12th Generation Intel® Alder Lake-S Series
Chipset
Intel R680E Chipset
USB/SATA/COM/LAN
8/3/2/2
Display
VGA/HDMI/DP
Temp
-40°C ~ 85°C
Expansion
1x PCI, 1x CFM Interface, 4x CMI Interface, 3x Full-size Mini-PCIe Sockets, 2x SIM Socket
Dimension
227mm x 261mm x 108 mm
規格書 / 查詢
