無風扇強固系統

嵌入式電腦

無風扇強固系統

型號

品牌

中央處理器

晶片組

USB/SATA/COM/LAN 電腦接口

顯示

溫度

擴充插槽

尺寸

規格書 / 查詢

BPC-3040-3A1

Arestech

Intel® Celeron N3350

N/A

6/1/4/2

VGA/HDMI

-20°C ~ 70°C

1x Mini PCIe

165mm x 238mm x 55mm

BPC-3040-1A1

Arestech

Intel® Pentium® N4200

N/A

6/1/4/2

VGA/HDMI

-20°C ~ 70°C

1x Mini PCIe

165mm x 238mm x 55mm

BPC-3040-2A1

Arestech

Intel® Pentium® N4200

N/A

4/1/3/2

VGA/HDMI

-20°C ~ 70°C

N/A

165mm x 238mm x 55mm

TANK-870-Q170

IEI

Intel 7th Gen Core CPU & Intel® Core™ i7-6700T, Intel® Core™ i5-6500TE

Intel® Q170

8/2/6/2

VGA/HDMI+DP

i7-6700TE: -20°C ~ 45°C; i5-6500TE: -20°C ~ 60°C

1 x full size PCIe Mini, 1 x half size PCIe Mini; 2-slot model: 1 x PCIe x16, 1 x PCI 2-slot model: 2 x PCIe x8 4-slot model: 2 x PCIe x8, 2 x PCI, 1 x Full-size PCIe Mni

121.5mm / 154.8mm x 255.2mm x 205mm (WxDxH)

TANK-870e-H110

IEI

Intel 7th Gen Core CPU & Intel® Core™ i5-6500TE

Intel® H110

4/2/2/0

VGA/HDMI

-20°C ~ 60°C

1 x full size PCIe Mini, 1 x half size PCIe Mini; 3A: 1 x PCIe x16, 2 x PCI; 3B: 1 x PCIe x16, 1 x PCIe x4, 1 x PCI

132.6mm x 255.2mm x 190mm

Arestech bpc-3040-1A Embedded System Danless Rugged System Rugged Handheld

BPC-3040-3A1

Brand

Arestech

CPU

Intel® Celeron N3350

Chipset

N/A

USB/SATA/COM/LAN

6/1/4/2

Display

VGA/HDMI

Temp

-20°C ~ 70°C

Expansion

1x Mini PCIe

Dimension

165mm x 238mm x 55mm

規格書 / 查詢

BPC-3040-1A1

Brand

Arestech

CPU

Intel® Pentium® N4200

Chipset

N/A

USB/SATA/COM/LAN

6/1/4/2

Display

VGA/HDMI

Temp

-20°C ~ 70°C

Expansion

1x Mini PCIe

Dimension

165mm x 238mm x 55mm

規格書 / 查詢

BPC-3040-2A1

Brand

Arestech

CPU

Intel® Pentium® N4200

Chipset

N/A

USB/SATA/COM/LAN

4/1/3/2

Display

VGA/HDMI

Temp

-20°C ~ 70°C

Expansion

N/A

Dimension

165mm x 238mm x 55mm

規格書 / 查詢

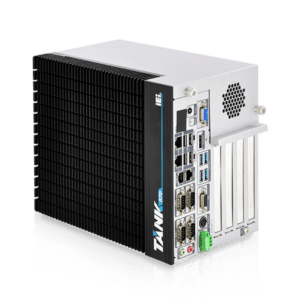

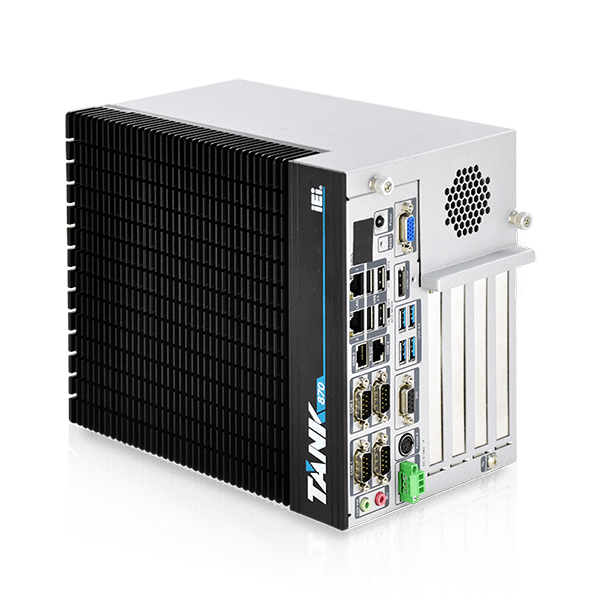

TANK-870-Q170

Brand

IEI

CPU

Intel 7th Gen Core CPU & Intel® Core™ i7-6700T, Intel® Core™ i5-6500TE

Chipset

Intel® Q170

USB/SATA/COM/LAN

8/2/6/2

Display

VGA/HDMI+DP

Temp

i7-6700TE: -20°C ~ 45°C; i5-6500TE: -20°C ~ 60°C

Expansion

1 x full size PCIe Mini, 1 x half size PCIe Mini; 2-slot model: 1 x PCIe x16, 1 x PCI 2-slot model: 2 x PCIe x8 4-slot model: 2 x PCIe x8, 2 x PCI, 1 x Full-size PCIe Mni

Dimension

121.5mm / 154.8mm x 255.2mm x 205mm (WxDxH)

規格書 / 查詢

TANK-870e-H110

Brand

IEI

CPU

Intel 7th Gen Core CPU & Intel® Core™ i5-6500TE

Chipset

Intel® H110

USB/SATA/COM/LAN

4/2/2/0

Display

VGA/HDMI

Temp

-20°C ~ 60°C

Expansion

1 x full size PCIe Mini, 1 x half size PCIe Mini; 3A: 1 x PCIe x16, 2 x PCI; 3B: 1 x PCIe x16, 1 x PCIe x4, 1 x PCI

Dimension

132.6mm x 255.2mm x 190mm

規格書 / 查詢
