品牌
中央處理器
晶片組
HDMI/DisplayPort
無風扇強固系統
型號
品牌
中央處理器
晶片組
USB/SATA/COM/LAN 電腦接口
顯示
溫度
擴充插槽
尺寸
規格書 / 查詢
EMS-TGL-6LAN
Avalue
11th Gen. Intel® Core™ i7/i5/i3 BGA Processor
N/A
6/1/2/6
HDMI/DisplayPort++
-40°C ~ 70°C
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1 1 x M.2 Key-E 2230 for Wi-Fi & BT Module
240mm x 150mm x 69 mm
EMS-TGL-6COM
Avalue
11th Gen. Intel® Core™ i7/i5/i3 BGA Processor
N/A
6/1/6/2
HDMI/DisplayPort++
-40°C ~ 70°C
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1 1 x M.2 Key-E 2230 for Wi-Fi & BT Module(CNVi)
240mm x 150mm x 69 mm
EMP-510 Series
Adlink
11th Gen Intel® Core™ i5 BGA SoC processor
N/A
4/0/1/0
HDMI/DisplayPort
0°C ~ 50°C
N/A
211mm x 115mm x 35mm
Nuvo-10000 Series
Neousys
Intel® 14th/ 13th/ 12th-Gen Core™ i9/ i7/ i5/ i3 Processor
Intel® Q670E platform controller hub
8/2/5/1
HDMI/DisplayPort
-25°C ~ 60°C
PCIe, PCI
241mm x 280mm x 188mm
eBOX671B
Axiomtek
13th/12th Gen Core™ i9/i7/i5/i3 & Celeron®
R680E
6/3/4/4
HDMI/DisplayPort
-40°C ~ 65°C
1 x PCI Express Mini Card slot, 1 x M.2 Key B 3050 slot, 1 x M.2 Key M 2280 slot, 1 x M.2 Key E 2230 slot, 1 x SIM slot, 1 x MXM3.1
280mm x 210mm x 80.5mm
eBOX630A
Axiomtek
Core™ i7-1185G7E/i5-1145G7E/i3-1115G4E or Celeron® 6305E
SoC Integrated
6/0/4/3
HDMI/DisplayPort++
-40°C ~ 60°C
1 x PCI Express Mini Card slot, 1 x M.2 Key E 2230, 1 x SIM slot
250mm x 170mm x 60mm
eBOX710A
Axiomtek
11th/10th gen Core™ i9/i7/i5/i3 or Celeron®
H420E
6/4/4/4
HDMI/DisplayPort
-40°C ~ 70°C
2 x PCI Express Mini Card slot, 1 x M.2 Key B 3050 slot, 1 x SIM slot, 1 x PCIe x4 slot
280mm x 210mm x 80.5mm
eBOX671A
Axiomtek
Xeon®, 11th/10th gen Core™ i9/i7/i5/i3 & Celeron®
W480E
6/4/4/4
HDMI/DisplayPort++
-40°C ~ 70°C
2 x PCI Express Mini Card slot, 1 x M.2 Key E 2230, 1 x SIM slot
280mm x 210mm x 80.5mm
eBOX560-52R-FL
Axiomtek
Core™ i5-8365UE & Celeron® 4305UE
SoC Integrated
4/1/2/2
HDMI/DisplayPort++
-10°C ~ 50°C
1 x M.2 Key E 2230 slot
141.6mm x 106mm x 55mm
eBOX565-52R-FL
Axiomtek
Core™ i5-8365UE & Celeron® 4305UE
SoC Integrated
4/1/2/2
HDMI/DisplayPort++
-10°C ~ 50°C
1 x M.2 Key E 2230 slot
141.6mm x 106mm x 73mm
EMS-TGL-6LAN
Brand
Avalue
CPU
11th Gen. Intel® Core™ i7/i5/i3 BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
6/1/2/6
Display
HDMI/DisplayPort++
Temp
-40°C ~ 70°C
Expansion
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1 1 x M.2 Key-E 2230 for Wi-Fi & BT Module
Dimension
240mm x 150mm x 69 mm
規格書 / 查詢
EMS-TGL-6COM
Brand
Avalue
CPU
11th Gen. Intel® Core™ i7/i5/i3 BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
6/1/6/2
Display
HDMI/DisplayPort++
Temp
-40°C ~ 70°C
Expansion
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1 1 x M.2 Key-E 2230 for Wi-Fi & BT Module(CNVi)
Dimension
240mm x 150mm x 69 mm
規格書 / 查詢
EMP-510 Series
Brand
Adlink
CPU
11th Gen Intel® Core™ i5 BGA SoC processor
Chipset
N/A
USB/SATA/COM/LAN
4/0/1/0
Display
HDMI/DisplayPort
Temp
0°C ~ 50°C
Expansion
N/A
Dimension
211mm x 115mm x 35mm
規格書 / 查詢
Nuvo-10000 Series
Brand
Neousys
CPU
Intel® 14th/ 13th/ 12th-Gen Core™ i9/ i7/ i5/ i3 Processor
Chipset
Intel® Q670E platform controller hub
USB/SATA/COM/LAN
8/2/5/1
Display
HDMI/DisplayPort
Temp
-25°C ~ 60°C
Expansion
PCIe, PCI
Dimension
241mm x 280mm x 188mm
規格書 / 查詢
eBOX671B
Brand
Axiomtek
CPU
13th/12th Gen Core™ i9/i7/i5/i3 & Celeron®
Chipset
R680E
USB/SATA/COM/LAN
6/3/4/4
Display
HDMI/DisplayPort
Temp
-40°C ~ 65°C
Expansion
1 x PCI Express Mini Card slot, 1 x M.2 Key B 3050 slot, 1 x M.2 Key M 2280 slot, 1 x M.2 Key E 2230 slot, 1 x SIM slot, 1 x MXM3.1
Dimension
280mm x 210mm x 80.5mm
規格書 / 查詢
eBOX630A
Brand
Axiomtek
CPU
Core™ i7-1185G7E/i5-1145G7E/i3-1115G4E or Celeron® 6305E
Chipset
SoC Integrated
USB/SATA/COM/LAN
6/0/4/3
Display
HDMI/DisplayPort++
Temp
-40°C ~ 60°C
Expansion
1 x PCI Express Mini Card slot, 1 x M.2 Key E 2230, 1 x SIM slot
Dimension
250mm x 170mm x 60mm
規格書 / 查詢
eBOX710A
Brand
Axiomtek
CPU
11th/10th gen Core™ i9/i7/i5/i3 or Celeron®
Chipset
H420E
USB/SATA/COM/LAN
6/4/4/4
Display
HDMI/DisplayPort
Temp
-40°C ~ 70°C
Expansion
2 x PCI Express Mini Card slot, 1 x M.2 Key B 3050 slot, 1 x SIM slot, 1 x PCIe x4 slot
Dimension
280mm x 210mm x 80.5mm
規格書 / 查詢
eBOX671A
Brand
Axiomtek
CPU
Xeon®, 11th/10th gen Core™ i9/i7/i5/i3 & Celeron®
Chipset
W480E
USB/SATA/COM/LAN
6/4/4/4
Display
HDMI/DisplayPort++
Temp
-40°C ~ 70°C
Expansion
2 x PCI Express Mini Card slot, 1 x M.2 Key E 2230, 1 x SIM slot
Dimension
280mm x 210mm x 80.5mm
規格書 / 查詢

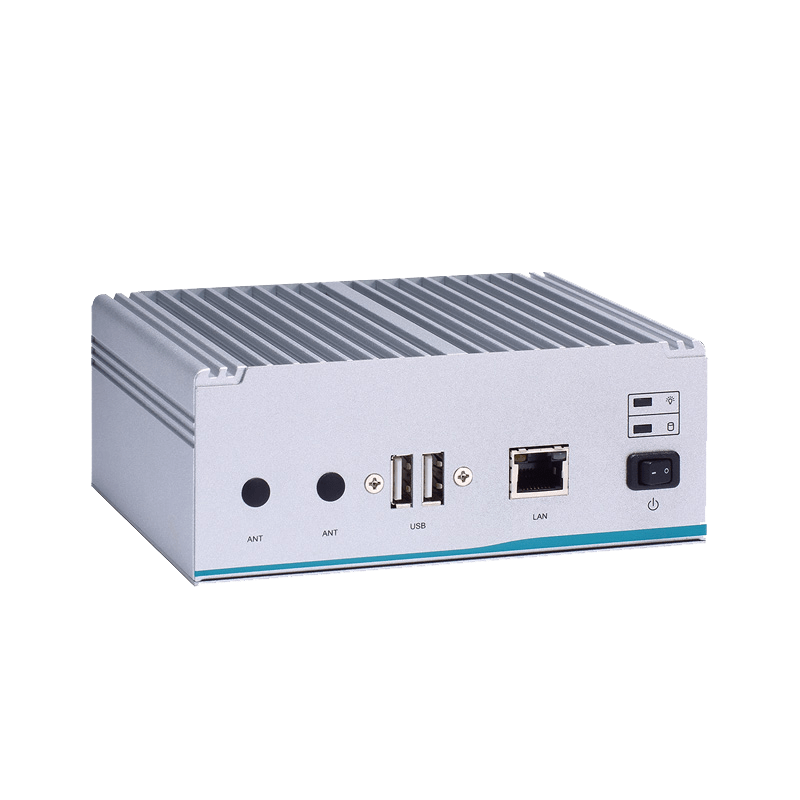

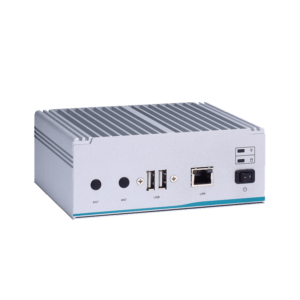

eBOX560-52R-FL
Brand
Axiomtek
CPU
Core™ i5-8365UE & Celeron® 4305UE
Chipset
SoC Integrated
USB/SATA/COM/LAN
4/1/2/2
Display
HDMI/DisplayPort++
Temp
-10°C ~ 50°C
Expansion
1 x M.2 Key E 2230 slot
Dimension
141.6mm x 106mm x 55mm
規格書 / 查詢

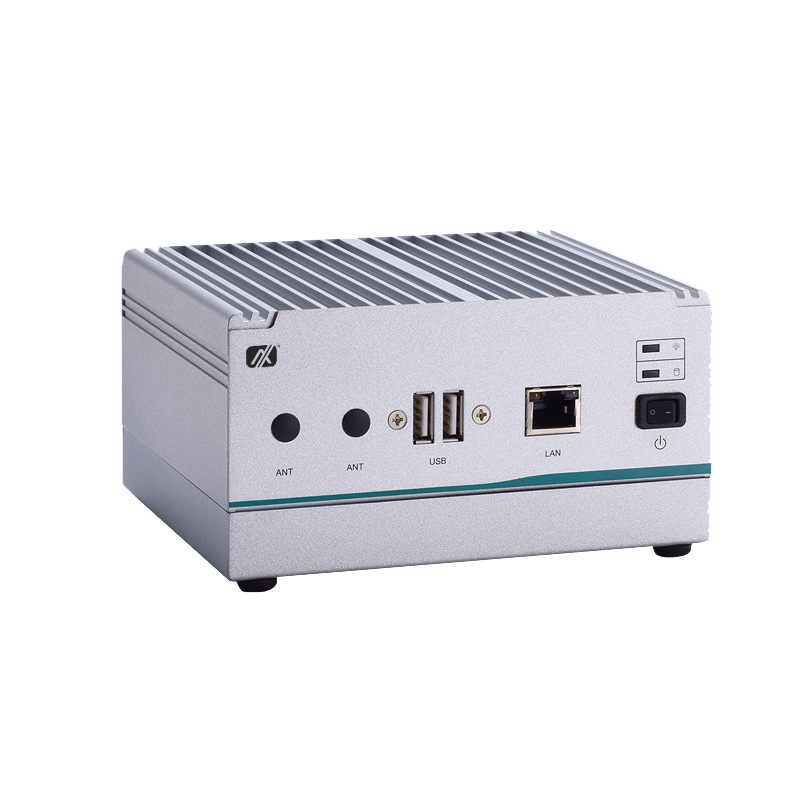

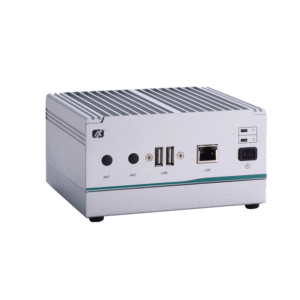

eBOX565-52R-FL
Brand
Axiomtek
CPU
Core™ i5-8365UE & Celeron® 4305UE
Chipset
SoC Integrated
USB/SATA/COM/LAN
4/1/2/2
Display
HDMI/DisplayPort++
Temp
-10°C ~ 50°C
Expansion
1 x M.2 Key E 2230 slot
Dimension
141.6mm x 106mm x 73mm
規格書 / 查詢
