品牌
中央處理器
R680E
顯示
無風扇強固系統
型號
品牌
中央處理器
晶片組
USB/SATA/COM/LAN 電腦接口
顯示
溫度
擴充插槽
尺寸
規格書 / 查詢
iSDV-200CTR
IEI
BlueRiver® AVP2000T
Intel® R680E
1/0/0/2
HDMI
-20°C ~ 60°C
N/A
238mm x 166mm x 44.5mm (WxDxH)
DRPC-242-ADL-P
IEI
Intel® Core™ i7/i5/i3, Intel® Celeron® 7305
Intel® R680E
6/1/6/0
HDMI/DP
-20°C ~ 60°C
M.2: 1 x 2230 A-key (PCIe Gen3 x1/USB 2.0) Support Vpro 1 x 3042/52 B-key (PCIe Gen3 x1/USB 3.2 Gen2/USB 2.0) 1 x On-board SIM card socket (hinge type) for M.2 B key 1 x 2280 M-key (PCIe Gen4 x4)
81mm x 150mm x 190mm (WxDxH)
Nuvo-10208GC Series
Neousys
Intel®13th/ 12th-Gen Core™ Processor
Intel® R680E Platform Controller Hub
7/0/2/1
VGA/DisplayPort
-25°C ~ 60°C
2x PCIe x16 slot@Gen4, 3x PCIe x8 slot@Gen3, 2x full-size mini PCI Express sockets with internal SIM sockets, 1x M.2 2242/3052 B key socket with internal SIM sockets
268mm x 400mm x 196mm
Nuvo-10108GC Series
Neousys
Intel® 14th/ 13th/ 12th-Gen Core™ Processor
Intel® R680E Platform Controller Hub
7/0/2/2
VGA/DisplayPort
-25°C ~ 60°C
1x PCIe x16 slot @Gen4, 3x PCIe x8 slots @Gen3, 2x full-size mini PCI Express sockets with internal SIM sockets, 1x M.2 2242/3052 B key socket with internal SIM sockets
214mm x 400mm x 196mm
eBOX671B
Axiomtek
13th/12th Gen Core™ i9/i7/i5/i3 & Celeron®
R680E
6/3/4/4
HDMI/DisplayPort
-40°C ~ 65°C
1 x PCI Express Mini Card slot, 1 x M.2 Key B 3050 slot, 1 x M.2 Key M 2280 slot, 1 x M.2 Key E 2230 slot, 1 x SIM slot, 1 x MXM3.1
280mm x 210mm x 80.5mm

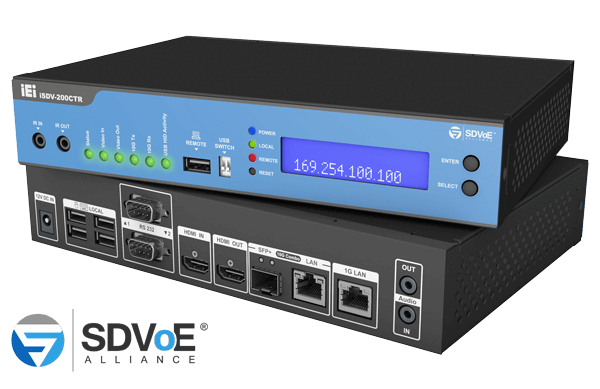

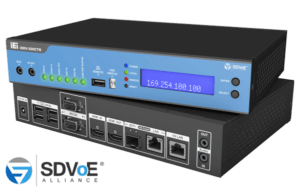

iSDV-200CTR
Brand
IEI
CPU
BlueRiver® AVP2000T
Chipset
Intel® R680E
USB/SATA/COM/LAN
1/0/0/2
Display
HDMI
Temp
-20°C ~ 60°C
Expansion
N/A
Dimension
238mm x 166mm x 44.5mm (WxDxH)
規格書 / 查詢

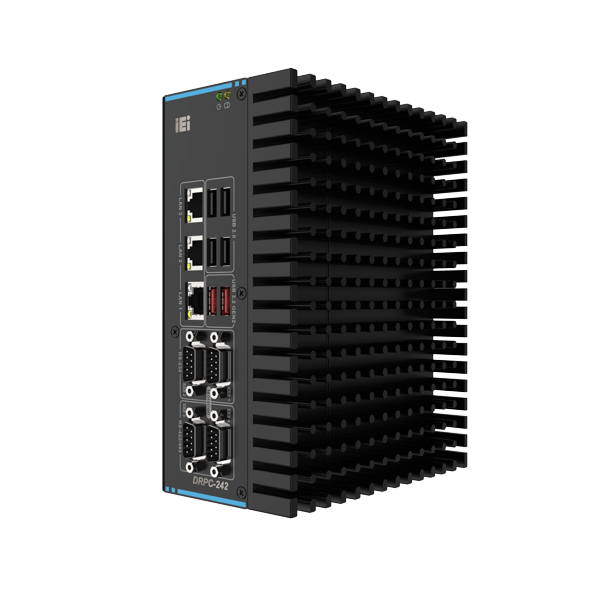

DRPC-242-ADL-P
Brand
IEI
CPU
Intel® Core™ i7/i5/i3, Intel® Celeron® 7305
Chipset
Intel® R680E
USB/SATA/COM/LAN
6/1/6/0
Display
HDMI/DP
Temp
-20°C ~ 60°C
Expansion
M.2: 1 x 2230 A-key (PCIe Gen3 x1/USB 2.0) Support Vpro 1 x 3042/52 B-key (PCIe Gen3 x1/USB 3.2 Gen2/USB 2.0) 1 x On-board SIM card socket (hinge type) for M.2 B key 1 x 2280 M-key (PCIe Gen4 x4)
Dimension
81mm x 150mm x 190mm (WxDxH)
規格書 / 查詢
Nuvo-10208GC Series
Brand
Neousys
CPU
Intel®13th/ 12th-Gen Core™ Processor
Chipset
Intel® R680E Platform Controller Hub
USB/SATA/COM/LAN
7/0/2/1
Display
VGA/DisplayPort
Temp
-25°C ~ 60°C
Expansion
2x PCIe x16 slot@Gen4, 3x PCIe x8 slot@Gen3, 2x full-size mini PCI Express sockets with internal SIM sockets, 1x M.2 2242/3052 B key socket with internal SIM sockets
Dimension
268mm x 400mm x 196mm
規格書 / 查詢
Nuvo-10108GC Series
Brand
Neousys
CPU
Intel® 14th/ 13th/ 12th-Gen Core™ Processor
Chipset
Intel® R680E Platform Controller Hub
USB/SATA/COM/LAN
7/0/2/2
Display
VGA/DisplayPort
Temp
-25°C ~ 60°C
Expansion
1x PCIe x16 slot @Gen4, 3x PCIe x8 slots @Gen3, 2x full-size mini PCI Express sockets with internal SIM sockets, 1x M.2 2242/3052 B key socket with internal SIM sockets
Dimension
214mm x 400mm x 196mm
規格書 / 查詢
eBOX671B
Brand
Axiomtek
CPU
13th/12th Gen Core™ i9/i7/i5/i3 & Celeron®
Chipset
R680E
USB/SATA/COM/LAN
6/3/4/4
Display
HDMI/DisplayPort
Temp
-40°C ~ 65°C
Expansion
1 x PCI Express Mini Card slot, 1 x M.2 Key B 3050 slot, 1 x M.2 Key M 2280 slot, 1 x M.2 Key E 2230 slot, 1 x SIM slot, 1 x MXM3.1
Dimension
280mm x 210mm x 80.5mm
規格書 / 查詢
