無風扇緊湊系統

嵌入式電腦

無風扇緊湊系統

型號

品牌

中央處理器

晶片組

USB/SATA/COM/LAN 電腦接口

顯示

溫度

擴充插槽

尺寸

規格書 / 查詢

BPC-5080-2A1

Arestech

Socket LGA 1151 for Intel® Core™ i9/i7/i5/i3/Celeron (Coffee Lake-S)

Intel® H310

8/2/2/2

VGA/DP

-20˚C~60˚C

1x Full-size Mini-PCIe, 1x M.2 E key 2230 (PCIe x1, USB 2.0 & CNVi)

238mm x 61mm x 245mm

ICO330

Axiomtek

Atom® x6212RE or Atom® x6414RE

SoC Integrated

2/2/6/3

HDMI

-40˚C~70˚C

1 x M.2 Key B 3050/3052 slot, 1 x Full-size Rev.1.2 PCI Express Mini Card slot, 1 x Half-size Rev.1.2 PCI Express Mini Card slot, 2 x SIM slot

51mm x 110mm x 155mm

ACS-ADN2C

Avalue

Intel® Alder Lake N series Processor (e.g., N97)

N/A

4/1/2/2

HDMI

-10°C ~ 50°C

1 x M.2 Key-E

129mm x 129mm x 38.7mm

EPS-KBLHE

Avalue

7th Gen Intel® Core™ i7/i5/i3

Mobile Intel® QM175 Chipset

6/1/2/2

HDMI

-10˚C~50˚C

1 x mPCIe, 1 x M.2 B-Key

240mm x 230mm x 72mm

ICO300-83M

Axiomtek

Core™ i7-7600U, Core™ i5-7300U, Core™ i3-7100U, Celeron® 3965U

SoC Integrated

2/2/6/2

HDMI

-40˚C~75˚C

1 x M.2 Key B 3052, 1 x Full-size Rev.1.2 PCI Express Mini Card slot, 1 x Half-size Rev.1.2 PCI Express Mini Card slot, 2 x SIM slot

51mm x 110mm x 155mm

ACS-ADNC

Avalue

Intel® Alder lake N97 Processor

N/A

6/1/4/2

1 x HDMI 2.0b, 1 x DP++

-10°C ~ 55°C

1 x M.2 Key-E (2230), 1 x M.2 Key-B (2242/3052), 1 x M.2 Key-M (2280)

180mm x 136mm x 40mm

EPC-WHL

Avalue

8th Generation Intel® Core™/ Celeron® Processor

N/A

4/1/0/2

HDMI

-10˚C~50˚C

2 x M.2

177mm x 123mm x 55mm

ICO300-83B

Axiomtek

Celeron® N3350, Pentium® N4200

SoC Integrated

4/2/4/2

HDMI

-40˚C~70˚C

1 x Half-size Rev.1.2 PCI Express Mini Card slot, 1 x Full-size Rev.1.2 PCI Express Mini Card slot

48mm x 110mm x 155mm

ACS-ALUC

Avalue

12th/13th Gen. Intel® Core™ i3/i5 (15W) processor

N/A

6/1/4/2

1 x DP++, 1 x HDMI 2.0b

-10°C ~50°C

1 x M.2 Key-E (2230), 1 x M.2 Key-B (2242/3052), 1 x M.2 Key-M (2280)

180mm x 136mm x 40mm

EPC-WHL-Din Rail

Avalue

8th Generation Intel® Core™/ Celeron® Processor

N/A

4/1/0/2

HDMI

-10˚C~50˚C

2 x M.2

177mm x 123mm x 55mm

Arestech bpc-5080 embedded computer fanless compact system

BPC-5080-2A1

Brand

Arestech

CPU

Socket LGA 1151 for Intel® Core™ i9/i7/i5/i3/Celeron (Coffee Lake-S)

Chipset

Intel® H310

USB/SATA/COM/LAN

8/2/2/2

Display

VGA/DP

Temp

-20˚C~60˚C

Expansion

1x Full-size Mini-PCIe, 1x M.2 E key 2230 (PCIe x1, USB 2.0 & CNVi)

Dimension

238mm x 61mm x 245mm

規格書 / 查詢

ICO330

Brand

Axiomtek

CPU

Atom® x6212RE or Atom® x6414RE

Chipset

SoC Integrated

USB/SATA/COM/LAN

2/2/6/3

Display

HDMI

Temp

-40˚C~70˚C

Expansion

1 x M.2 Key B 3050/3052 slot, 1 x Full-size Rev.1.2 PCI Express Mini Card slot, 1 x Half-size Rev.1.2 PCI Express Mini Card slot, 2 x SIM slot

Dimension

51mm x 110mm x 155mm

規格書 / 查詢

ACS-ADN2C

Brand

Avalue

CPU

Intel® Alder Lake N series Processor (e.g., N97)

Chipset

N/A

USB/SATA/COM/LAN

4/1/2/2

Display

HDMI

Temp

-10°C ~ 50°C

Expansion

1 x M.2 Key-E

Dimension

129mm x 129mm x 38.7mm

規格書 / 查詢

EPS-KBLHE

Brand

Avalue

CPU

7th Gen Intel® Core™ i7/i5/i3

Chipset

Mobile Intel® QM175 Chipset

USB/SATA/COM/LAN

6/1/2/2

Display

HDMI

Temp

-10˚C~50˚C

Expansion

1 x mPCIe, 1 x M.2 B-Key

Dimension

240mm x 230mm x 72mm

規格書 / 查詢

ICO300-83M

Brand

Axiomtek

CPU

Core™ i7-7600U, Core™ i5-7300U, Core™ i3-7100U, Celeron® 3965U

Chipset

SoC Integrated

USB/SATA/COM/LAN

2/2/6/2

Display

HDMI

Temp

-40˚C~75˚C

Expansion

1 x M.2 Key B 3052, 1 x Full-size Rev.1.2 PCI Express Mini Card slot, 1 x Half-size Rev.1.2 PCI Express Mini Card slot, 2 x SIM slot

Dimension

51mm x 110mm x 155mm

規格書 / 查詢

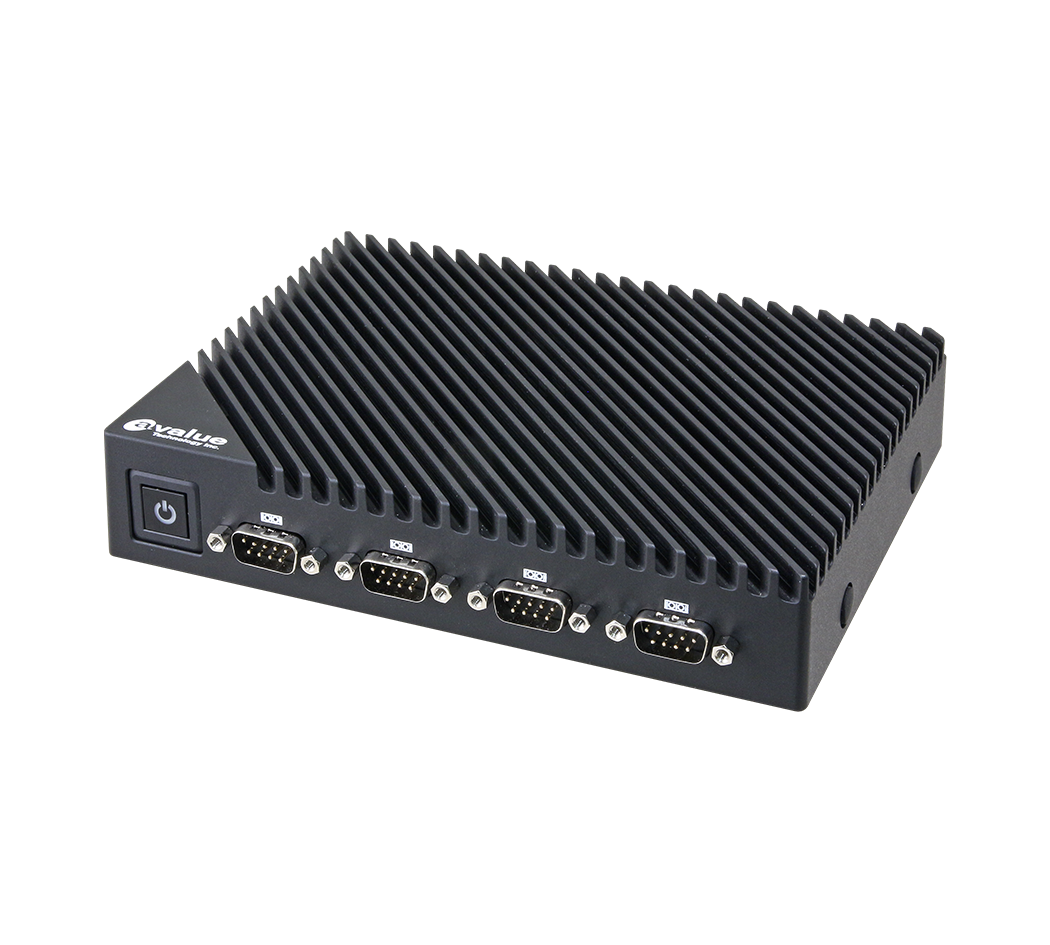

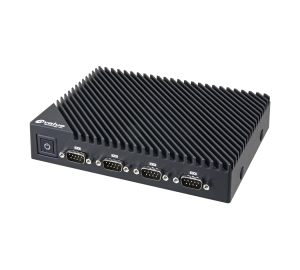

ACS-ADNC

Brand

Avalue

CPU

Intel® Alder lake N97 Processor

Chipset

N/A

USB/SATA/COM/LAN

6/1/4/2

Display

1 x HDMI 2.0b, 1 x DP++

Temp

-10°C ~ 55°C

Expansion

1 x M.2 Key-E (2230), 1 x M.2 Key-B (2242/3052), 1 x M.2 Key-M (2280)

Dimension

180mm x 136mm x 40mm

規格書 / 查詢

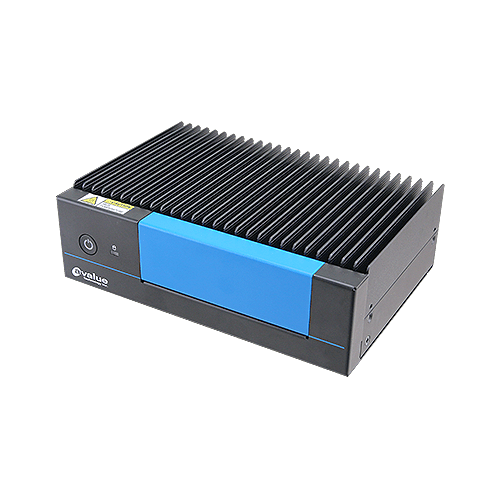

EPC-WHL

Brand

Avalue

CPU

8th Generation Intel® Core™/ Celeron® Processor

Chipset

N/A

USB/SATA/COM/LAN

4/1/0/2

Display

HDMI

Temp

-10˚C~50˚C

Expansion

2 x M.2

Dimension

177mm x 123mm x 55mm

規格書 / 查詢

ICO300-83B

Brand

Axiomtek

CPU

Celeron® N3350, Pentium® N4200

Chipset

SoC Integrated

USB/SATA/COM/LAN

4/2/4/2

Display

HDMI

Temp

-40˚C~70˚C

Expansion

1 x Half-size Rev.1.2 PCI Express Mini Card slot, 1 x Full-size Rev.1.2 PCI Express Mini Card slot

Dimension

48mm x 110mm x 155mm

規格書 / 查詢

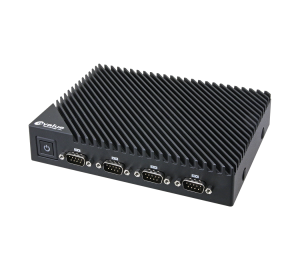

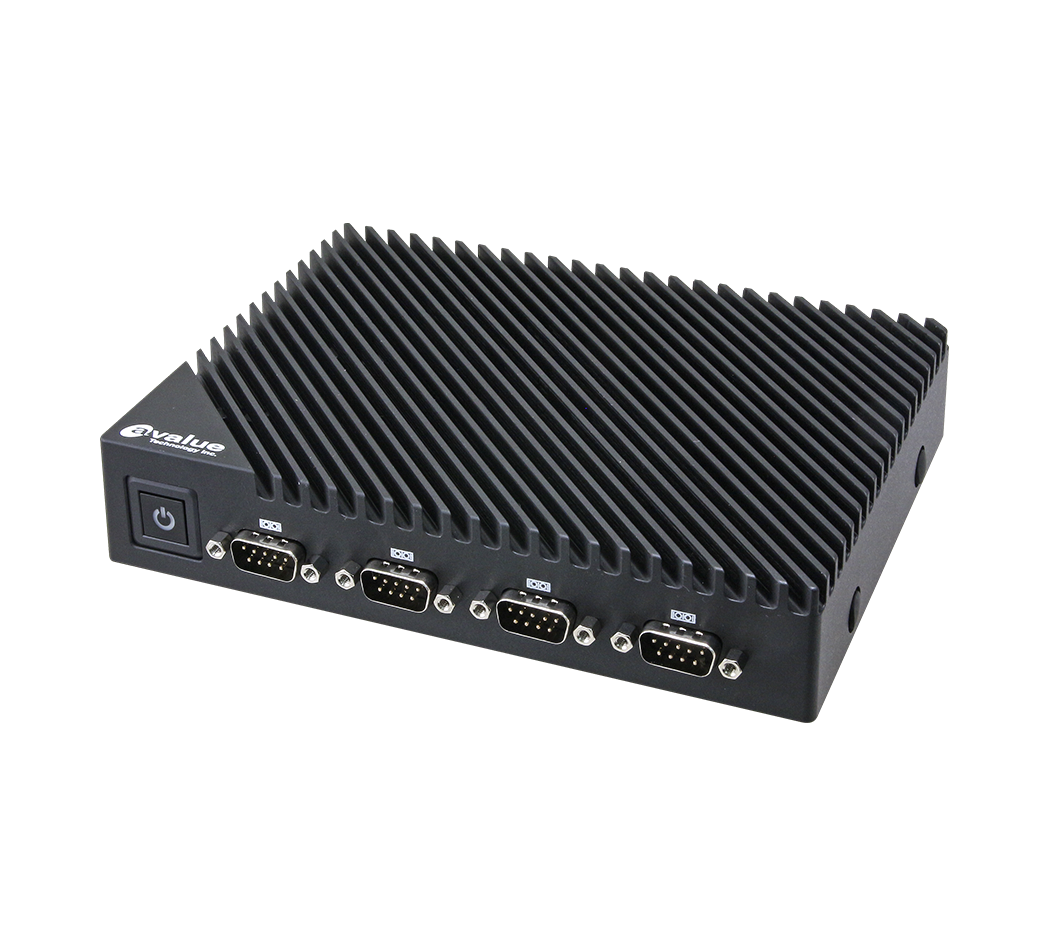

ACS-ALUC

Brand

Avalue

CPU

12th/13th Gen. Intel® Core™ i3/i5 (15W) processor

Chipset

N/A

USB/SATA/COM/LAN

6/1/4/2

Display

1 x DP++, 1 x HDMI 2.0b

Temp

-10°C ~50°C

Expansion

1 x M.2 Key-E (2230), 1 x M.2 Key-B (2242/3052), 1 x M.2 Key-M (2280)

Dimension

180mm x 136mm x 40mm

規格書 / 查詢

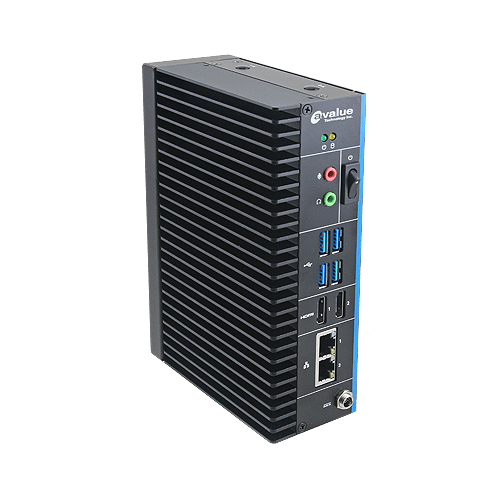

EPC-WHL-Din Rail

Brand

Avalue

CPU

8th Generation Intel® Core™/ Celeron® Processor

Chipset

N/A

USB/SATA/COM/LAN

4/1/0/2

Display

HDMI

Temp

-10˚C~50˚C

Expansion

2 x M.2

Dimension

177mm x 123mm x 55mm

規格書 / 查詢
