無風扇緊湊系統

嵌入式電腦

無風扇緊湊系統

型號

品牌

中央處理器

晶片組

USB/SATA/COM/LAN 電腦接口

顯示

溫度

擴充插槽

尺寸

規格書 / 查詢

ICO300

Axiomtek

Atom™ E3815/E3827

SoC Integrated

2/1/4/2

VGA

-20˚C~70˚C

1 x Full-size PCI Express Mini Card slot, 1 x SIM card socket

48mm x 110mm x 155mm

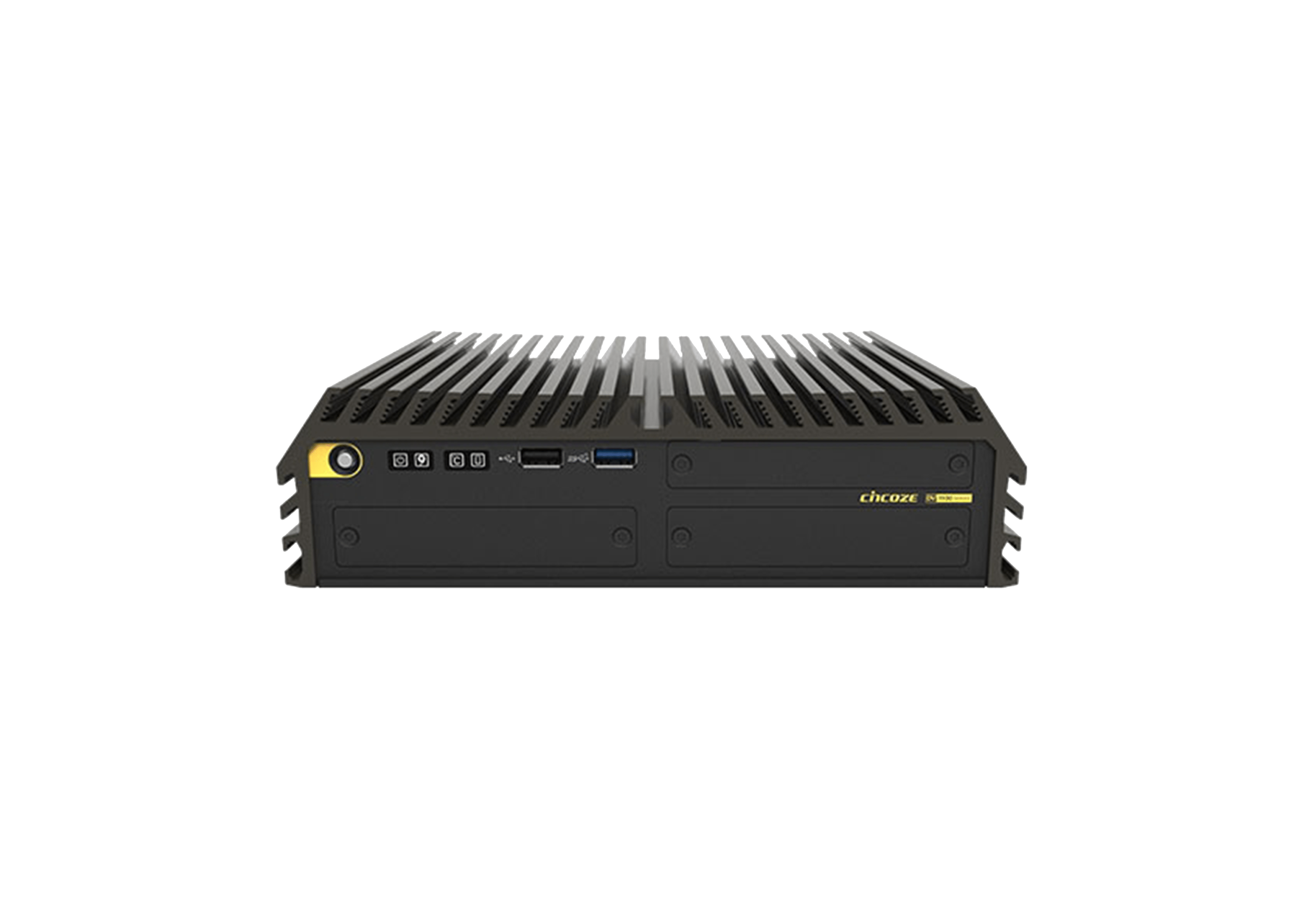

DV-1100

Cincoze

13/12th Gen Intel® Core™ i9/i7/i5/i3 Processors

Intel H610E Chipset

6/1/2/2

DP/VGA/CMI

-40°C ~ 70°C

1x M.2 Key E Type 2230 Socket, 1x M.2 Key B Type 3042/3052 Socket, 1x M.2 Key B Type 2242 Socket, 1x Front Accessible Dual Nano SIM Socket, 1x CMI Display Module Expansion, 2x CMI-COM/DIO Module Expansion, 1x CFM-IGN Module Expansion

224.1mm x 162mm x 62mm

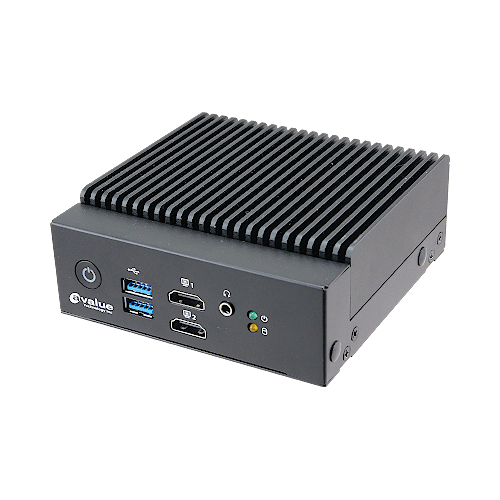

NUC-APL-Slim

Avalue

Intel® Celeron® Processor

N/A

4/0/2/2

HDMI

-10˚C~50˚C

2 x M.2

115mm x 111mm x 45mm

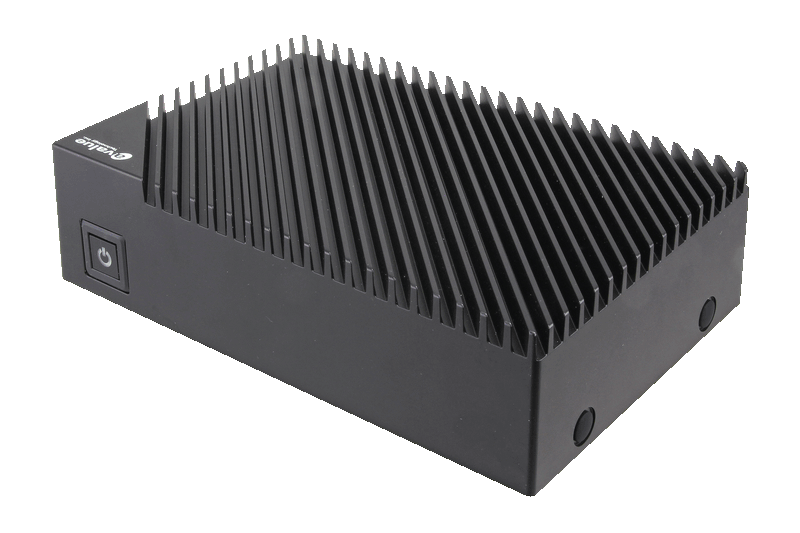

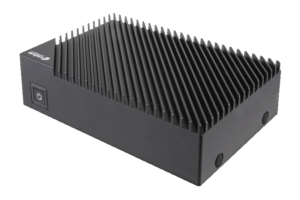

ACS10-TGU

Avalue

11th Gen Intel® Core™ i5/i3 Tiger Lake-UP3 Processor

Intel® Q370/H310 Express Chipset

6/1/2/0

DisplayPort++

0˚C~50˚C

1 x M.2 Key-E 2230, 1 x M.2 Key-B 2242/3042/3052 with 1x SIM Slot

188mm x 120mm x 48mm

uIBX-250-BW

IEI

Intel® Celeron® N3160

SoC

4/1/0/2

VGA/HDMI

-20˚C~60˚C

1 x Full-size PCIe Mini card

136.6mm x 102.4mm x 52mm (WxDxH)

NUC-EHL

Avalue

Intel® Elkhart Lake Celeron® Processor J6412

N/A

6/1/2/0

HDMI

0˚C~+60˚C

1 x M.2 Key-B 2242/3042 with Internal SIM Slot, 1 x M.2 Key-E 2230

170mm x 125mm x 36mm

DA-1200

Cincoze

Onboard Intel ® Alder Lake-N Processor N97

N/A

2/1/0/2

-40°C ~ 70°C

1x M.2 Key B Type 3042/3052 Socket, 1x M.2 Key B Type 2242, 1x Front Accessible SIM Socket, 1x CMI Module Expansion

150mm x 105mm x 52.3mm

DV-1000

Cincoze

9th Generation Intel® Coffee Lake-R S Series CPU

Intel H310 Chipset

6/1/2/2

DP/VGA

-40°C ~ 70°C

2x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E 2230 Socket, 1x CMI Display Module Expansion, 2x CMI I/O Module Expansion, 1x CFM (Control Function Module) Interface

224.1mm x 162mm x 64.2 mm

EPC-EHL

Avalue

Intel Atom® x6413E Processor

N/A

4/0/4/2

HDMI/DisplayPort

-40 ~ 70°C

1 x M.2 (Key-B, 2242/3042, 1 x M.2 (Key-E, 2230, PCIex1, USB2.0)PCIex2,

177mm x 123mm x 65mm

P1201

Cincoze

Intel® Atom® x6425E / x6211E Processor

N/A

4/2/3/2

VGA/DP

-40°C ~ 70°C

1x Mini PCI Express 1x SIM Socket 1x M.2 2x CFM 1x CDS

204.5mm x 149mm x 41.5 mm

ICO300

Brand

Axiomtek

CPU

Atom™ E3815/E3827

Chipset

SoC Integrated

USB/SATA/COM/LAN

2/1/4/2

Display

VGA

Temp

-20˚C~70˚C

Expansion

1 x Full-size PCI Express Mini Card slot, 1 x SIM card socket

Dimension

48mm x 110mm x 155mm

規格書 / 查詢

DV-1100

Brand

Cincoze

CPU

13/12th Gen Intel® Core™ i9/i7/i5/i3 Processors

Chipset

Intel H610E Chipset

USB/SATA/COM/LAN

6/1/2/2

Display

DP/VGA/CMI

Temp

-40°C ~ 70°C

Expansion

Dimension

224.1mm x 162mm x 62mm

規格書 / 查詢

NUC-APL-Slim

Brand

Avalue

CPU

Intel® Celeron® Processor

Chipset

N/A

USB/SATA/COM/LAN

4/0/2/2

Display

HDMI

Temp

-10˚C~50˚C

Expansion

2 x M.2

Dimension

115mm x 111mm x 45mm

規格書 / 查詢

ACS10-TGU

Brand

Avalue

CPU

11th Gen Intel® Core™ i5/i3 Tiger Lake-UP3 Processor

Chipset

Intel® Q370/H310 Express Chipset

USB/SATA/COM/LAN

6/1/2/0

Display

DisplayPort++

Temp

0˚C~50˚C

Expansion

1 x M.2 Key-E 2230, 1 x M.2 Key-B 2242/3042/3052 with 1x SIM Slot

Dimension

188mm x 120mm x 48mm

規格書 / 查詢

uIBX-250-BW

Brand

IEI

CPU

Intel® Celeron® N3160

Chipset

SoC

USB/SATA/COM/LAN

4/1/0/2

Display

VGA/HDMI

Temp

-20˚C~60˚C

Expansion

1 x Full-size PCIe Mini card

Dimension

136.6mm x 102.4mm x 52mm (WxDxH)

規格書 / 查詢

NUC-EHL

Brand

Avalue

CPU

Intel® Elkhart Lake Celeron® Processor J6412

Chipset

N/A

USB/SATA/COM/LAN

6/1/2/0

Display

HDMI

Temp

0˚C~+60˚C

Expansion

1 x M.2 Key-B 2242/3042 with Internal SIM Slot, 1 x M.2 Key-E 2230

Dimension

170mm x 125mm x 36mm

規格書 / 查詢

DA-1200

Brand

Cincoze

CPU

Onboard Intel ® Alder Lake-N Processor N97

Chipset

N/A

USB/SATA/COM/LAN

2/1/0/2

Display

Temp

-40°C ~ 70°C

Expansion

1x M.2 Key B Type 3042/3052 Socket, 1x M.2 Key B Type 2242, 1x Front Accessible SIM Socket, 1x CMI Module Expansion

Dimension

150mm x 105mm x 52.3mm

規格書 / 查詢

DV-1000

Brand

Cincoze

CPU

9th Generation Intel® Coffee Lake-R S Series CPU

Chipset

Intel H310 Chipset

USB/SATA/COM/LAN

6/1/2/2

Display

DP/VGA

Temp

-40°C ~ 70°C

Expansion

2x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E 2230 Socket, 1x CMI Display Module Expansion, 2x CMI I/O Module Expansion, 1x CFM (Control Function Module) Interface

Dimension

224.1mm x 162mm x 64.2 mm

規格書 / 查詢

EPC-EHL

Brand

Avalue

CPU

Intel Atom® x6413E Processor

Chipset

N/A

USB/SATA/COM/LAN

4/0/4/2

Display

HDMI/DisplayPort

Temp

-40 ~ 70°C

Expansion

1 x M.2 (Key-B, 2242/3042, 1 x M.2 (Key-E, 2230, PCIex1, USB2.0)PCIex2,

Dimension

177mm x 123mm x 65mm

規格書 / 查詢

P1201

Brand

Cincoze

CPU

Intel® Atom® x6425E / x6211E Processor

Chipset

N/A

USB/SATA/COM/LAN

4/2/3/2

Display

VGA/DP

Temp

-40°C ~ 70°C

Expansion

1x Mini PCI Express 1x SIM Socket 1x M.2 2x CFM 1x CDS

Dimension

204.5mm x 149mm x 41.5 mm

規格書 / 查詢
