品牌
規格
晶片組
中央處理器
標準儲存
型號
品牌
規格
晶片組
中央處理器
記憶體
儲存
硬盤陣列/主機總線適配器
電源供應器
規格書 / 查詢
SSG-6049SP-DE1CR60
Supermicro
4U Rackmount
C621
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
60x 3.5"/2.5" Hot-swap SAS3/SATA3 drives
N/A
2600W Redundant Power Supplies with PMBus
SSG-136R-4MU32JBF
Supermicro
1U Rackmount
System on Chip
N/A
32 front hot-swap 2.5" NVMe drive bays
32 front hot-swap 2.5" NVMe drive bays
AOC-SLG4-4X4T-O (Qualified SAS HBA / controller for JBOF functionality)
2x 1000W Redundant Titanium Level (96%) power supplies
SSG-610P-ACR12N4L
Supermicro
1U Rackmount
C621A
3rd Gen Intel® Xeon® Scalable processors
16 DIMM slots, Up to 4TB ECC DDR4-3200: LRDIMM/RDIMM
12x 3.5" hot-swap SAS/SATA, 4x hot-swap EDSFF Short Bays, 2x 2.5" 7mm NVMe/Hot-Swap SATA drive bays
via Broadcom® 3224
800W Redundant Power Supplies with PMBus

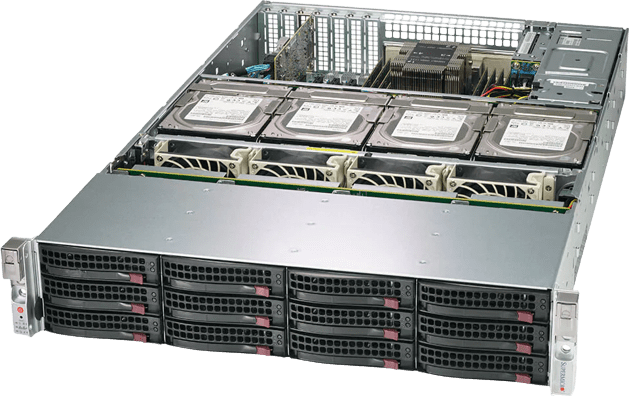

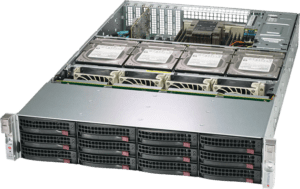

SSG-620P-ACR16H
Supermicro
2U
C621A
Intel® 3rd Gen Xeon® Scalable Processors
16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
16x 3.5" hot-swap hybrid SATA/SAS drive bays
Broadcom® 3916
1600W Redundant Power Supplies with PMBus
SSG-122B-NE316R
Supermicro
1U Rackmount
System on Chip
Intel® Xeon® 6 6700 series processors with E-cores
32 DIMM slots; Up to 8TB 6400MT/s ECC DDR5 RDIMM/LRDIMM
16 front hot-swap E3.S 1T NVMe drive bays
N/A
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies

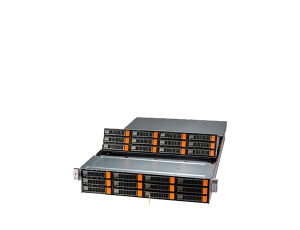

SSG-521E-E1CR24H-G1
Supermicro
2U Rackmount
Intel® C741
Single Intel® Xeon® Silver 4510 Processors; Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
16 DIMM slots; Up to 4TB 5600MT/s ECC DDR5 RDIMM
12 front hot-swap 3.5" SAS/SATA drive bays, 12 top-loading hot-swap 3.5" SAS/SATA drive bays, 2 rear hot-swap 2.5" SATA drive bays
Includes SAS Hardware RAID
2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
SSG-610P-ACR12N4H
Supermicro
1U Rackmount
C621A
3rd Gen Intel® Xeon® Scalable processors
16 DIMM slots, Up to 4TB ECC DDR4-3200: LRDIMM/RDIMM
12x 3.5" hot-swap SAS/SATA, 4x hot-swap EDSFF Short Bays, 2x 2.5" 7mm NVMe/Hot-Swap SATA drive bays
via Broadcom® 3916
800W Redundant Power Supplies with PMBus
SSG-620P-ACR12L
Supermicro
2U Rackmount
C621A
Intel® 3rd Gen Xeon® Scalable Processors
16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
12x 3.5" hot-swap hybrid SATA/SAS drive bays
Broadcom® 3816
AC 1200W, Titanium Level, Redundancy,PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
SSG-222B-NE3X24R
Supermicro
2U Rackmount
System on Chip
Intel® Xeon® 6 6700 series processors with E-cores
32 DIMM slots; Up to 8TB 6400MT/s ECC DDR5 RDIMM/LRDIMM
24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
N/A
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies

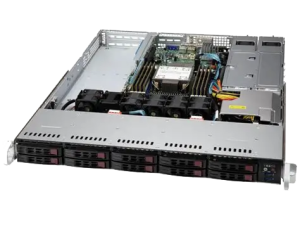

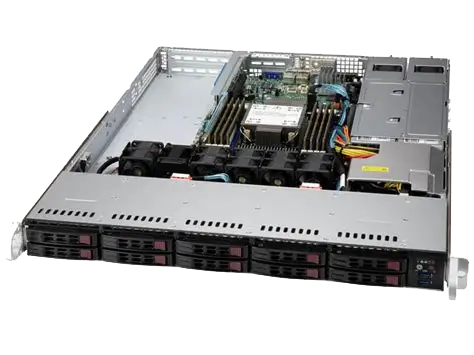

SYS-110P-WR
Supermicro
1U Rackmount
Intel® C621A
Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
8 DIMMs; Up to 2TB 3200MT/s ECC RDIMM/LRDIMM
10 front hot-swap 2.5" SATA drive bays (with 4 hybrid NVMe/SATA drive bays); 1 M.2 PCIe 3.0 x4 NVMe/SATA slot
SATA/NVMe RAID 0/1/5/10 support via chipset (SAS3 with additional SAS controller card)
2x 750W Redundant (1 + 1) Platinum Level (94%) power supplies
SSG-6049SP-DE1CR60
Brand
Supermicro
Form Factor
4U Rackmount
Chipset
C621
CPU
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Memory
16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Storage
60x 3.5"/2.5" Hot-swap SAS3/SATA3 drives
RAID / HBA
N/A
Power Supply
2600W Redundant Power Supplies with PMBus
規格書 / 查詢
SSG-136R-4MU32JBF
Brand
Supermicro
Form Factor
1U Rackmount
Chipset
System on Chip
CPU
N/A
Memory
32 front hot-swap 2.5" NVMe drive bays
Storage
32 front hot-swap 2.5" NVMe drive bays
RAID / HBA
AOC-SLG4-4X4T-O (Qualified SAS HBA / controller for JBOF functionality)
Power Supply
2x 1000W Redundant Titanium Level (96%) power supplies
規格書 / 查詢
SSG-610P-ACR12N4L
Brand
Supermicro
Form Factor
1U Rackmount
Chipset
C621A
CPU
3rd Gen Intel® Xeon® Scalable processors
Memory
16 DIMM slots, Up to 4TB ECC DDR4-3200: LRDIMM/RDIMM
Storage
12x 3.5" hot-swap SAS/SATA, 4x hot-swap EDSFF Short Bays, 2x 2.5" 7mm NVMe/Hot-Swap SATA drive bays
RAID / HBA
via Broadcom® 3224
Power Supply
800W Redundant Power Supplies with PMBus
規格書 / 查詢
SSG-620P-ACR16H
Brand
Supermicro
Form Factor
2U
Chipset
C621A
CPU
Intel® 3rd Gen Xeon® Scalable Processors
Memory
16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
Storage
16x 3.5" hot-swap hybrid SATA/SAS drive bays
RAID / HBA
Broadcom® 3916
Power Supply
1600W Redundant Power Supplies with PMBus
規格書 / 查詢
SSG-122B-NE316R
Brand
Supermicro
Form Factor
1U Rackmount
Chipset
System on Chip
CPU
Intel® Xeon® 6 6700 series processors with E-cores
Memory
32 DIMM slots; Up to 8TB 6400MT/s ECC DDR5 RDIMM/LRDIMM
Storage
16 front hot-swap E3.S 1T NVMe drive bays
RAID / HBA
N/A
Power Supply
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
規格書 / 查詢
SSG-521E-E1CR24H-G1
Brand
Supermicro
Form Factor
2U Rackmount
Chipset
Intel® C741
CPU
Single Intel® Xeon® Silver 4510 Processors; Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
Memory
16 DIMM slots; Up to 4TB 5600MT/s ECC DDR5 RDIMM
Storage
12 front hot-swap 3.5" SAS/SATA drive bays, 12 top-loading hot-swap 3.5" SAS/SATA drive bays, 2 rear hot-swap 2.5" SATA drive bays
RAID / HBA
Includes SAS Hardware RAID
Power Supply
2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
規格書 / 查詢
SSG-610P-ACR12N4H
Brand
Supermicro
Form Factor
1U Rackmount
Chipset
C621A
CPU
3rd Gen Intel® Xeon® Scalable processors
Memory
16 DIMM slots, Up to 4TB ECC DDR4-3200: LRDIMM/RDIMM
Storage
12x 3.5" hot-swap SAS/SATA, 4x hot-swap EDSFF Short Bays, 2x 2.5" 7mm NVMe/Hot-Swap SATA drive bays
RAID / HBA
via Broadcom® 3916
Power Supply
800W Redundant Power Supplies with PMBus
規格書 / 查詢
SSG-620P-ACR12L
Brand
Supermicro
Form Factor
2U Rackmount
Chipset
C621A
CPU
Intel® 3rd Gen Xeon® Scalable Processors
Memory
16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
Storage
12x 3.5" hot-swap hybrid SATA/SAS drive bays
RAID / HBA
Broadcom® 3816
Power Supply
AC 1200W, Titanium Level, Redundancy,PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
規格書 / 查詢
SSG-222B-NE3X24R
Brand
Supermicro
Form Factor
2U Rackmount
Chipset
System on Chip
CPU
Intel® Xeon® 6 6700 series processors with E-cores
Memory
32 DIMM slots; Up to 8TB 6400MT/s ECC DDR5 RDIMM/LRDIMM
Storage
24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
RAID / HBA
N/A
Power Supply
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
規格書 / 查詢
SYS-110P-WR
Brand
Supermicro
Form Factor
1U Rackmount
Chipset
Intel® C621A
CPU
Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Memory
8 DIMMs; Up to 2TB 3200MT/s ECC RDIMM/LRDIMM
Storage
10 front hot-swap 2.5" SATA drive bays (with 4 hybrid NVMe/SATA drive bays); 1 M.2 PCIe 3.0 x4 NVMe/SATA slot
RAID / HBA
SATA/NVMe RAID 0/1/5/10 support via chipset (SAS3 with additional SAS controller card)
Power Supply
2x 750W Redundant (1 + 1) Platinum Level (94%) power supplies
規格書 / 查詢
