Brand
CPU
Chipset
Display
Fanless Rugged System
Model
Brand
CPU
Chipset
USB/SATA/COM/LAN
Display
Temp
Expansion
Dimension
Datasheet / Enquiry

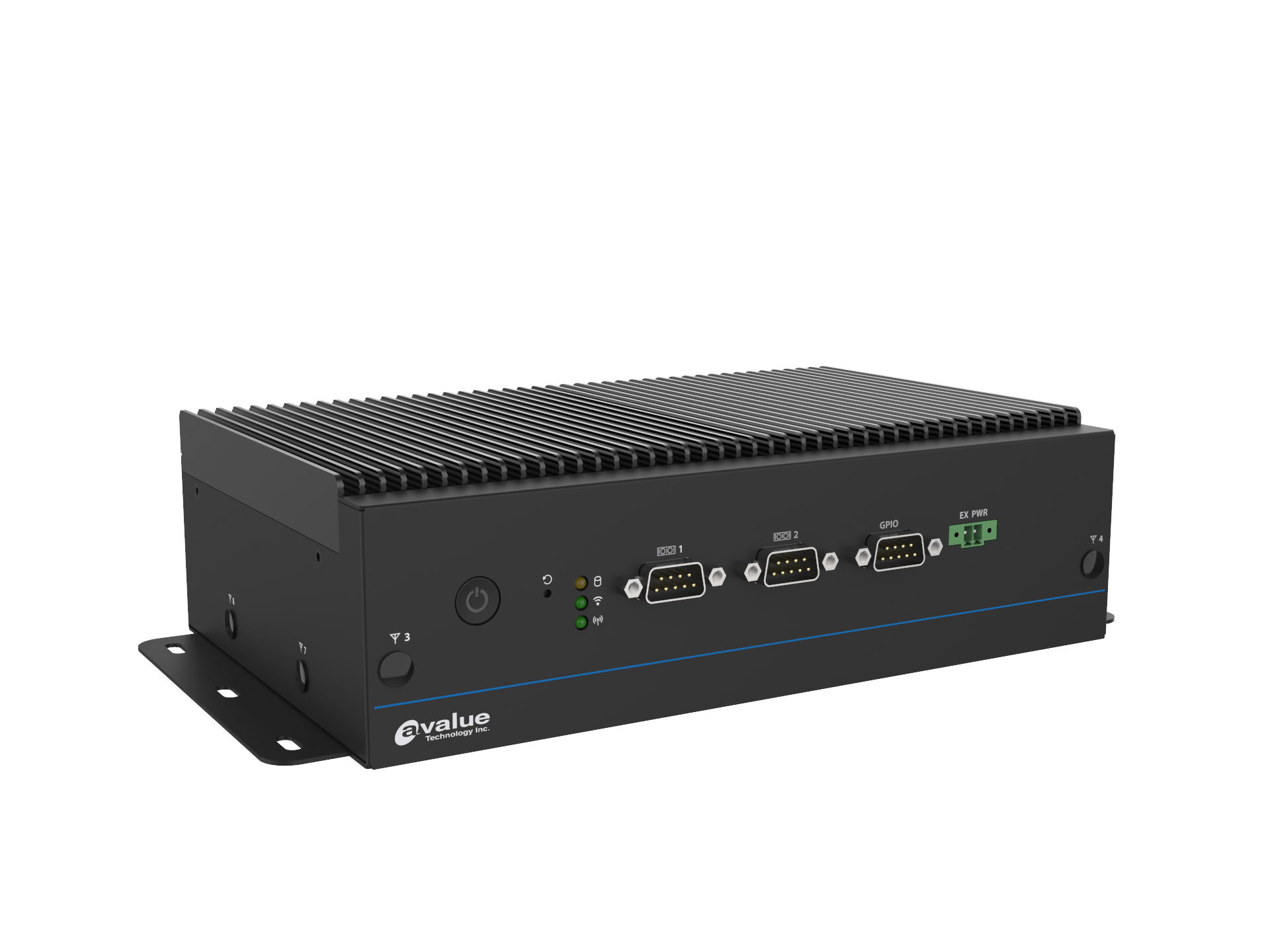

EMS-TGL-HDMI
Avalue
11th Gen. Intel® Core™ i7/i5/i3 BGA Processor
N/A
6/1/4/4
HDMI/DisplayPort++
-40°C ~ 70°C
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1 1 x M.2 Key-E 2230 for Wi-Fi & BT Module(CNVi)
240mm x 150mm x 69 mm

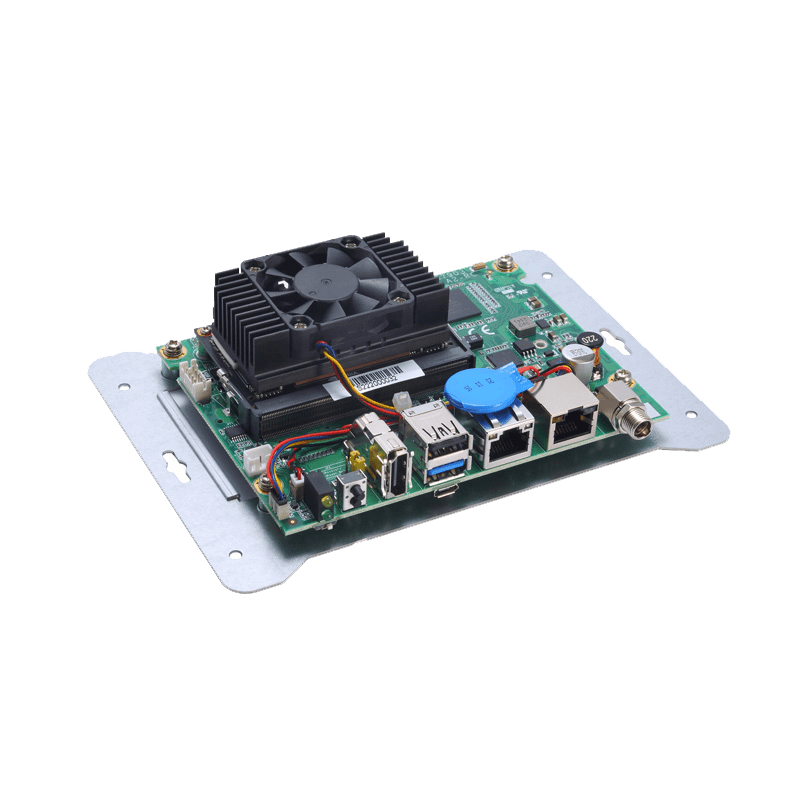

AIE100-ONX
Axiomtek
8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
SoC integrated
3/0/0/1
HDMI
-25°C ~ 50°C
1 x PCI Express Mini Card, 1 x SIM slot
148.6mm x 129.8mm x 34.6 mm
GT-92RL-H
Neousys
Intel® 14th/ 13th/ 12th-Gen LGA1700 processor (35W/65W)
Intel® R680E platform controller hub
4/2/2/9
1x HDMI 1.4, 1x DisplayPort
-40°C to 55°C
1x M.2 2280 M key with PCIe-Gen 4x4 for NVMe storge, 2x full-size mPCIe sockets for MVB modules
440mm (W) x 250mm (D) x 88mm (H)
EMS-SKLU-GPIO
Avalue
6th Gen Intel® Core™ SoC i7/i5/i3/Celeron BGA Processor
N/A
3/1/2/4
DisplayPort
-40°C ~ 70°C
1 x Mini PCIe, support PCIe/USB2.0 1 x M.2 2242/3042, B-Key, supports SATA/ PCIex1/ USB3.0
240mm x 158mm x 75mm
AIE900A-AO
Axiomtek
8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
SoC integrated
6/0/2/2
HDMI
-25°C ~ 50°C
1 x MIPI CSI-2 connector, 1 x PCI Express Mini Card slot, 1 x M.2 Key E 2230 slot, 1 x M.2 Key B 3052/3050/3042 slot, 1 x SIM slot
239mm x 185.3mm x 79.4mm
EMS-EHL-6COM
Avalue
Intel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
N/A
6/1/6/2
HDMI/DP
-40°C ~ 70°C
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V 1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)
240mm x 150mm x 64 mm
POC-751VTC
Neousys
Intel® Alder Lake Core™ i3-N305 processor 15W with 8 E-Cores
N/A
4/1/4/4
1x DP++, 1x HDMI™ 1.4b
-40°C to 70°C
2x full-size mPCIe for WiFi/ 4G/ 5G module with conduction-cooled heatsink
225 mm (W) x 164 mm (D) x 116 mm (H)
EMS-SKLU-USB
Avalue
6th Gen Intel® Core™ SoC i7/i5/i3/Celeron BGA Processor
N/A
11/1/2/2
DisplayPort
-20°C ~ 60°C
1 x Mini PCIe 1 x M.2 (2242/3042) B-Key, supports SATA/ PCIex1/ USB3.0 Storage
240mm x 151.5mm x 60mm
AIE800-904-FL-DC
Axiomtek
6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
SoC integrated
2/0/0/2
HDMI
-30°C ~ 50°C
1 x PCI Express Mini Card, 1 x SIM slot
366.83mm x 235mm x 83.8mm
EMS-EHL-PSE
Avalue
Intel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
N/A
6/1/2/10
HDMI/DP
-40°C ~ 70°C
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V 1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)
240mm x 150mm x 64 mm
EMS-TGL-HDMI
Brand
Avalue
CPU
11th Gen. Intel® Core™ i7/i5/i3 BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
6/1/4/4
Display
HDMI/DisplayPort++
Temp
-40°C ~ 70°C
Expansion
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1 1 x M.2 Key-E 2230 for Wi-Fi & BT Module(CNVi)
Dimension
240mm x 150mm x 69 mm
Datasheet / Enquiry
AIE100-ONX
Brand
Axiomtek
CPU
8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
Chipset
SoC integrated
USB/SATA/COM/LAN
3/0/0/1
Display
HDMI
Temp
-25°C ~ 50°C
Expansion
1 x PCI Express Mini Card, 1 x SIM slot
Dimension
148.6mm x 129.8mm x 34.6 mm
Datasheet / Enquiry
GT-92RL-H
Brand
Neousys
CPU
Intel® 14th/ 13th/ 12th-Gen LGA1700 processor (35W/65W)
Chipset
Intel® R680E platform controller hub
USB/SATA/COM/LAN
4/2/2/9
Display
1x HDMI 1.4, 1x DisplayPort
Temp
-40°C to 55°C
Expansion
1x M.2 2280 M key with PCIe-Gen 4x4 for NVMe storge, 2x full-size mPCIe sockets for MVB modules
Dimension
440mm (W) x 250mm (D) x 88mm (H)
Datasheet / Enquiry
EMS-SKLU-GPIO
Brand
Avalue
CPU
6th Gen Intel® Core™ SoC i7/i5/i3/Celeron BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
3/1/2/4
Display
DisplayPort
Temp
-40°C ~ 70°C
Expansion
1 x Mini PCIe, support PCIe/USB2.0 1 x M.2 2242/3042, B-Key, supports SATA/ PCIex1/ USB3.0
Dimension
240mm x 158mm x 75mm
Datasheet / Enquiry
AIE900A-AO
Brand
Axiomtek
CPU
8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
Chipset
SoC integrated
USB/SATA/COM/LAN
6/0/2/2
Display
HDMI
Temp
-25°C ~ 50°C
Expansion
1 x MIPI CSI-2 connector, 1 x PCI Express Mini Card slot, 1 x M.2 Key E 2230 slot, 1 x M.2 Key B 3052/3050/3042 slot, 1 x SIM slot
Dimension
239mm x 185.3mm x 79.4mm
Datasheet / Enquiry
EMS-EHL-6COM
Brand
Avalue
CPU
Intel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
6/1/6/2
Display
HDMI/DP
Temp
-40°C ~ 70°C
Expansion
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V 1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)
Dimension
240mm x 150mm x 64 mm
Datasheet / Enquiry
POC-751VTC
Brand
Neousys
CPU
Intel® Alder Lake Core™ i3-N305 processor 15W with 8 E-Cores
Chipset
N/A
USB/SATA/COM/LAN
4/1/4/4
Display
1x DP++, 1x HDMI™ 1.4b
Temp
-40°C to 70°C
Expansion
2x full-size mPCIe for WiFi/ 4G/ 5G module with conduction-cooled heatsink
Dimension
225 mm (W) x 164 mm (D) x 116 mm (H)
Datasheet / Enquiry
EMS-SKLU-USB
Brand
Avalue
CPU
6th Gen Intel® Core™ SoC i7/i5/i3/Celeron BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
11/1/2/2
Display
DisplayPort
Temp
-20°C ~ 60°C
Expansion
1 x Mini PCIe 1 x M.2 (2242/3042) B-Key, supports SATA/ PCIex1/ USB3.0 Storage
Dimension
240mm x 151.5mm x 60mm
Datasheet / Enquiry
AIE800-904-FL-DC
Brand
Axiomtek
CPU
6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
Chipset
SoC integrated
USB/SATA/COM/LAN
2/0/0/2
Display
HDMI
Temp
-30°C ~ 50°C
Expansion
1 x PCI Express Mini Card, 1 x SIM slot
Dimension
366.83mm x 235mm x 83.8mm
Datasheet / Enquiry
EMS-EHL-PSE
Brand
Avalue
CPU
Intel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
Chipset
N/A
USB/SATA/COM/LAN
6/1/2/10
Display
HDMI/DP
Temp
-40°C ~ 70°C
Expansion
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V 1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)
Dimension
240mm x 150mm x 64 mm
Datasheet / Enquiry
